Sled Shed

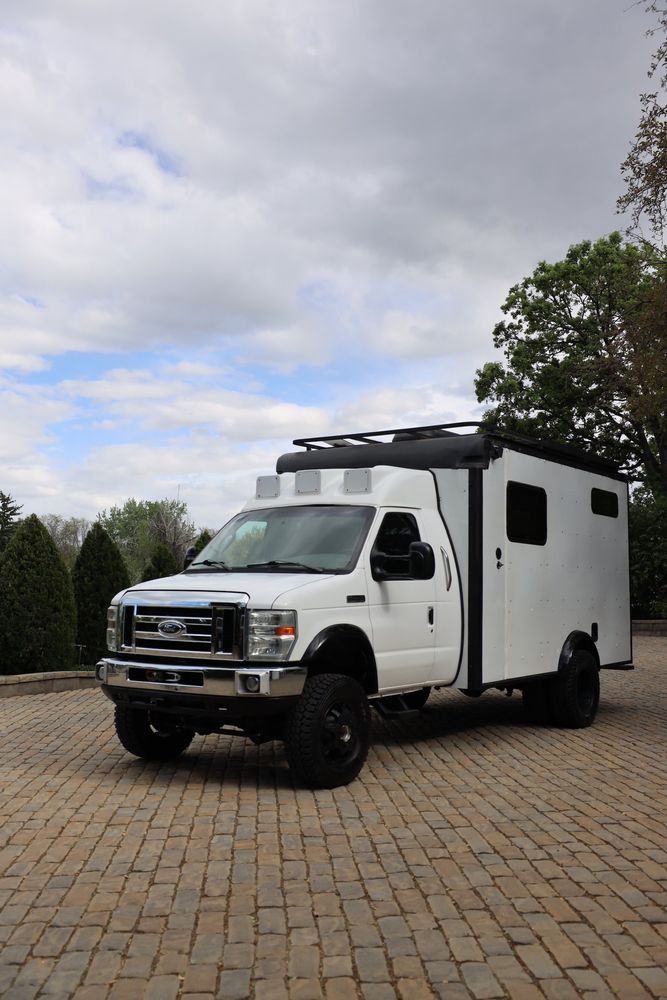

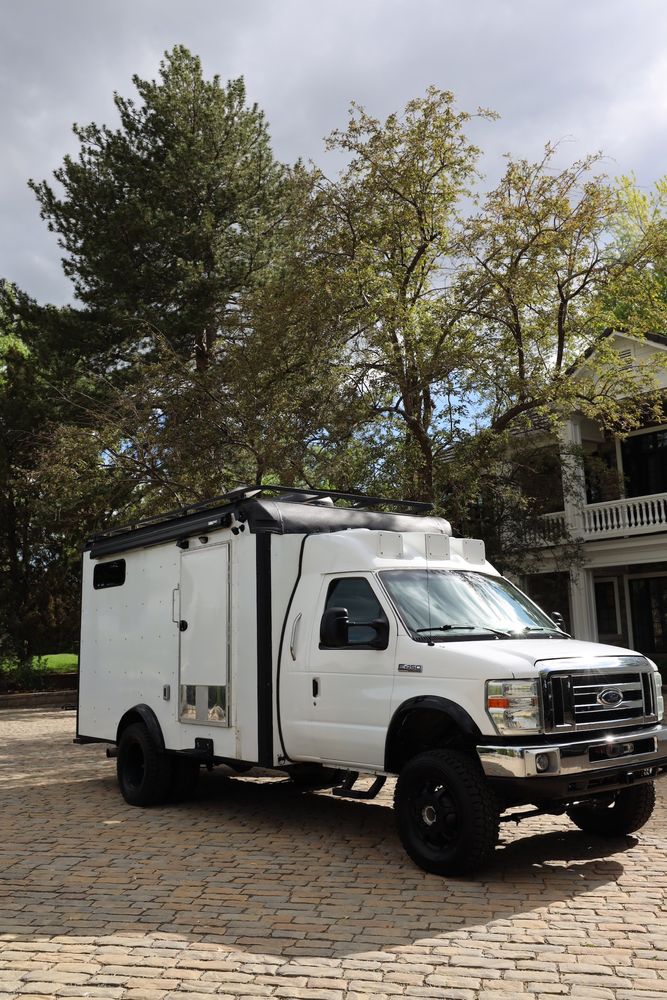

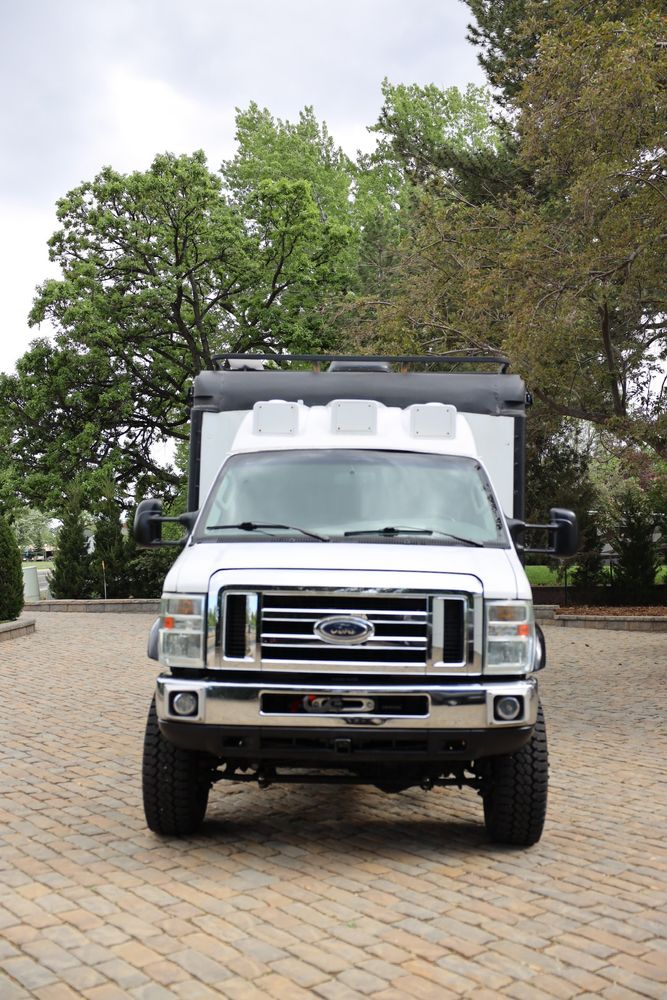

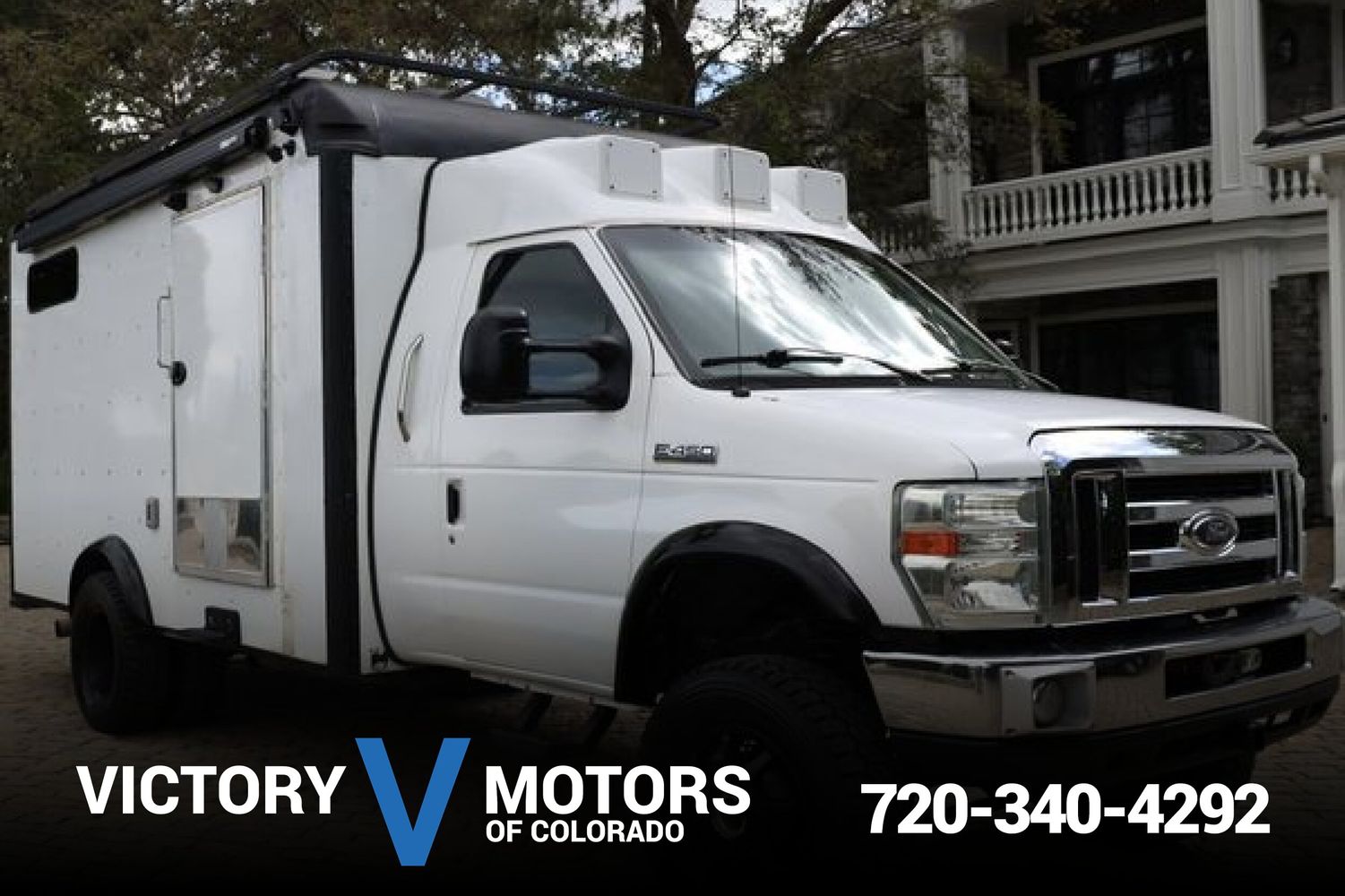

2008 E-450

Rare extended cab

Brand new 6.0 diesel

New injectors

New glow plugs

New head studs

Bullet proofed

New alternators high output

4x4 conversion within 10k miles

New transfer case

New transmission within 10k miles

Differentials serviced

Hubs just serviced

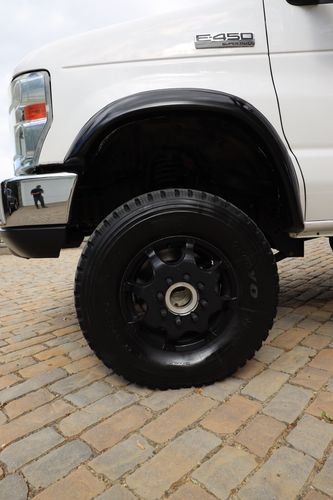

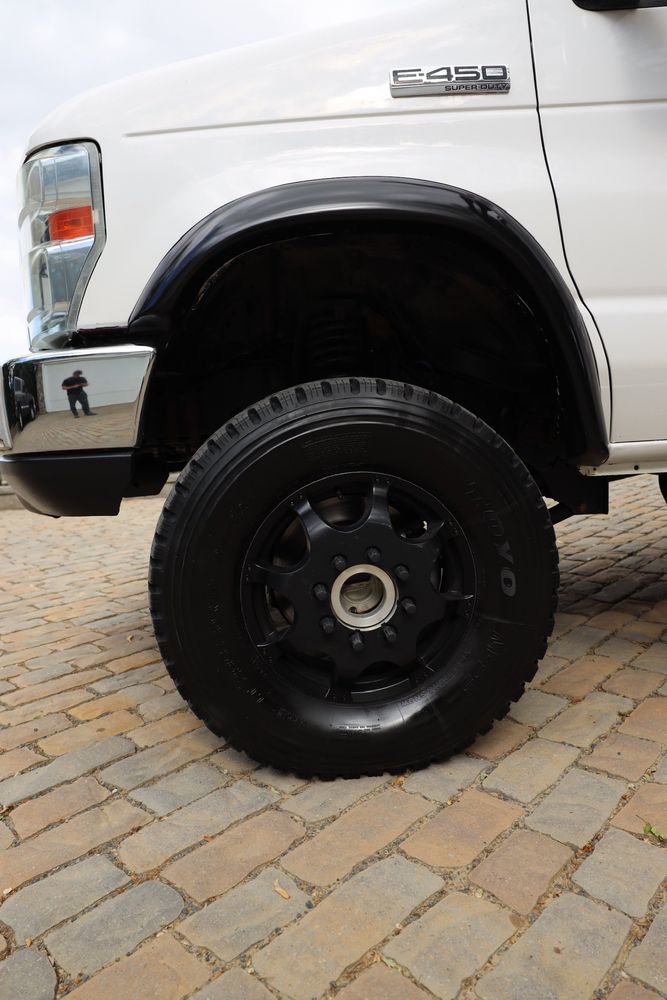

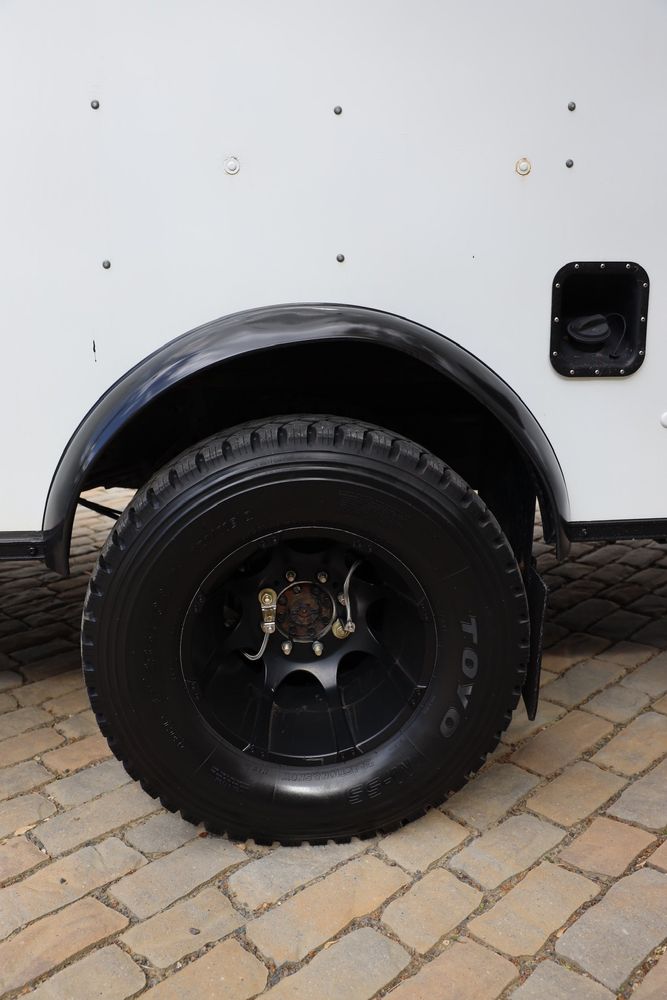

New Toyo M-55 tires

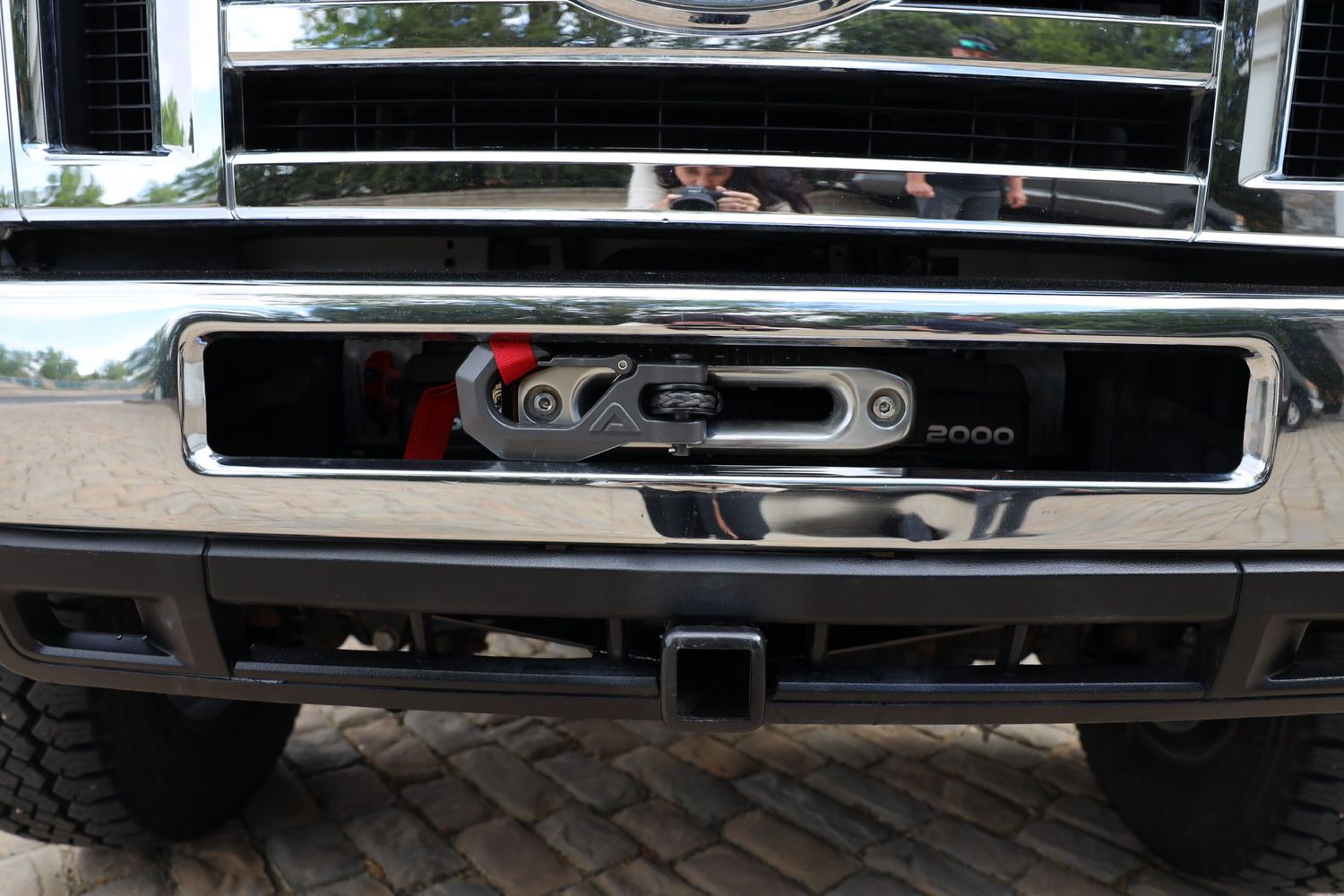

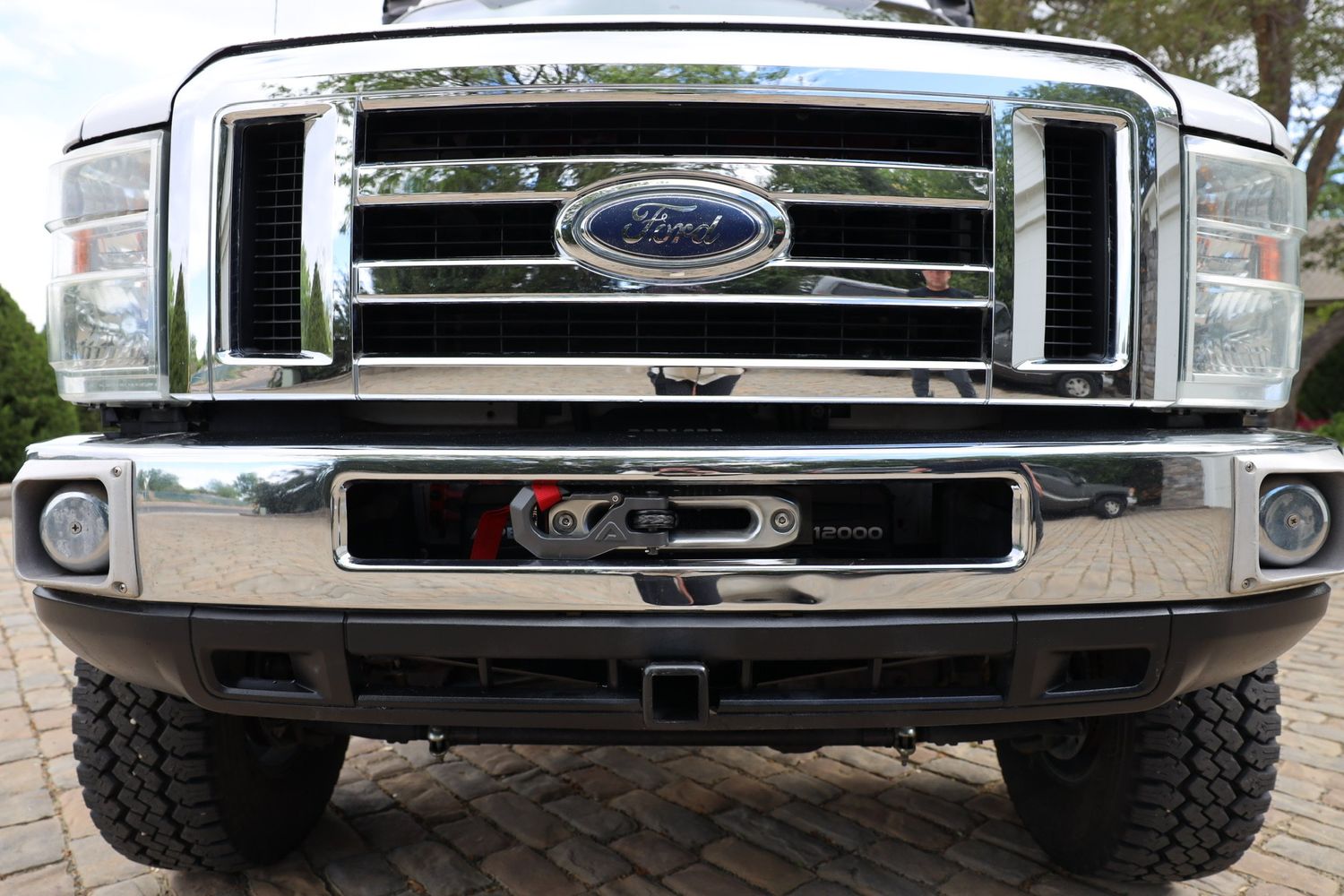

New 12k lbs winches front and rear

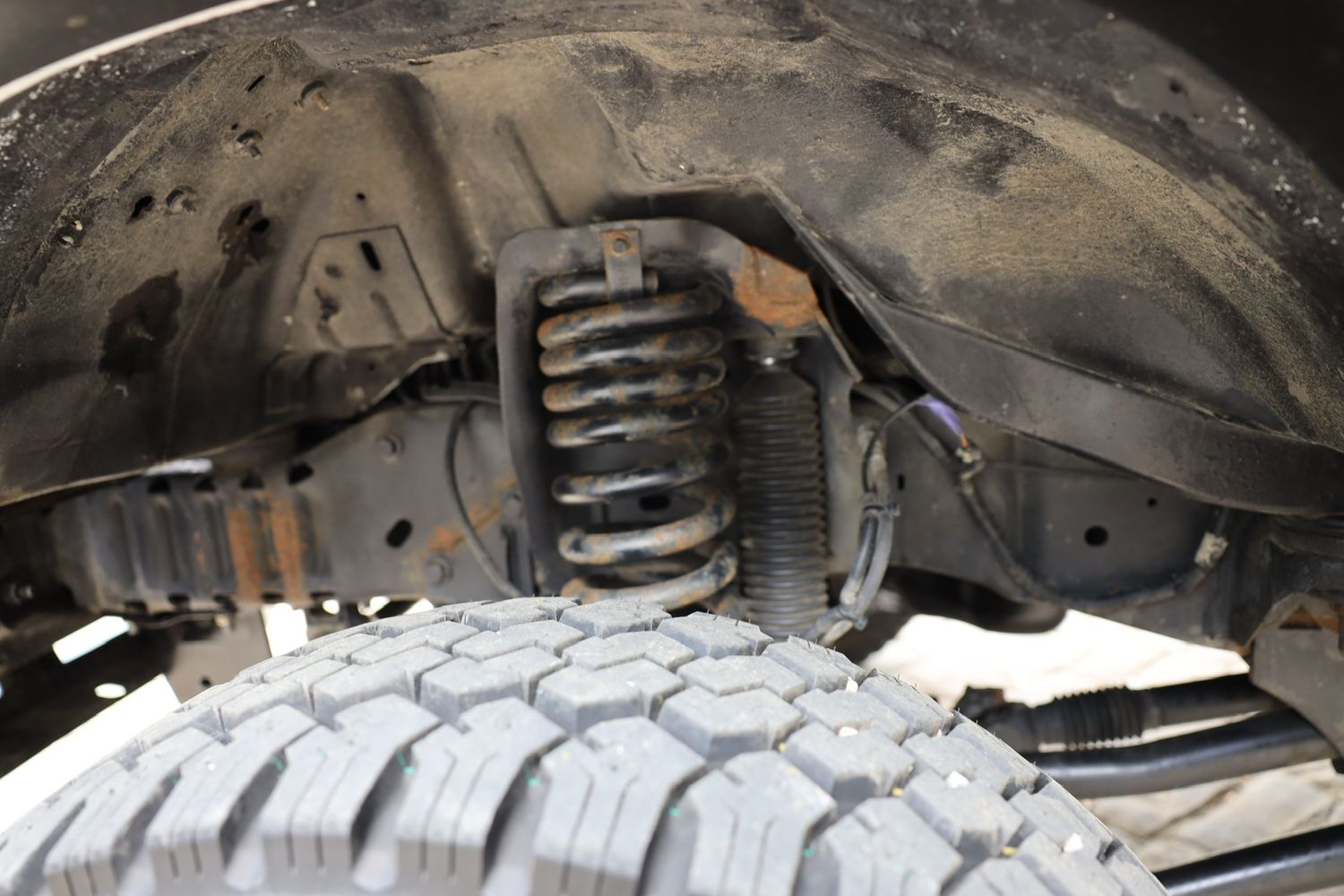

New air bags with compressor and 2.5 gallon tank 200psi with chuck

(Also plumbed into the water lines for easy and fast winterization)

Front crossmember modified for easy of future maintenance work.

Sway bar quick disconnect

Limited slip rear differential

Mechanicals and drivability are better than new.

HOUSE

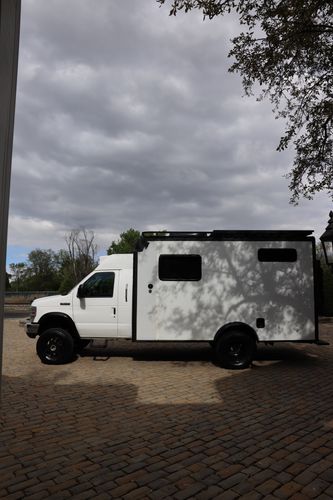

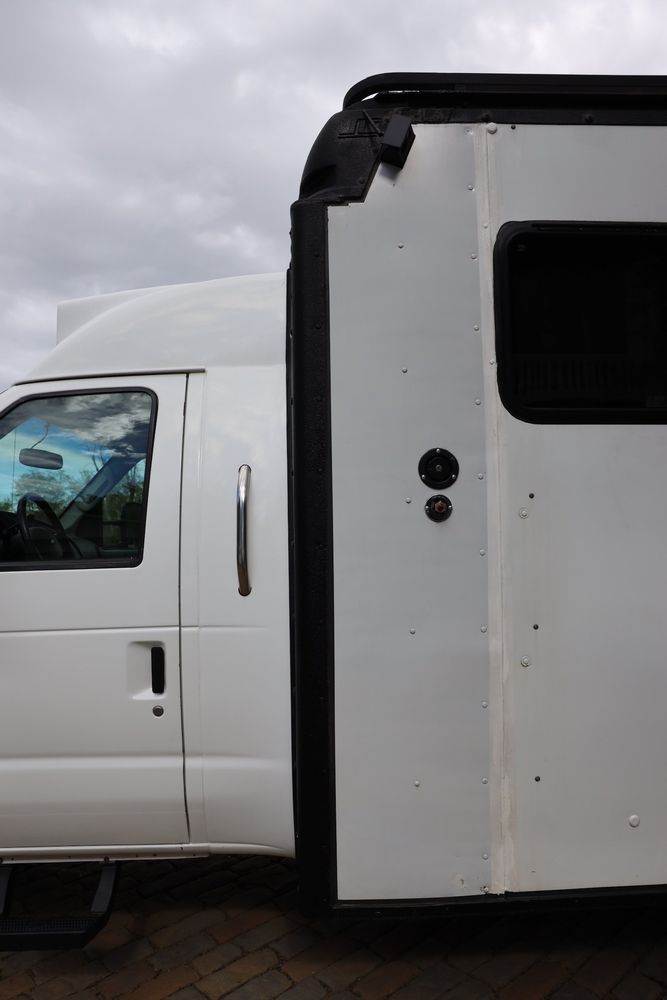

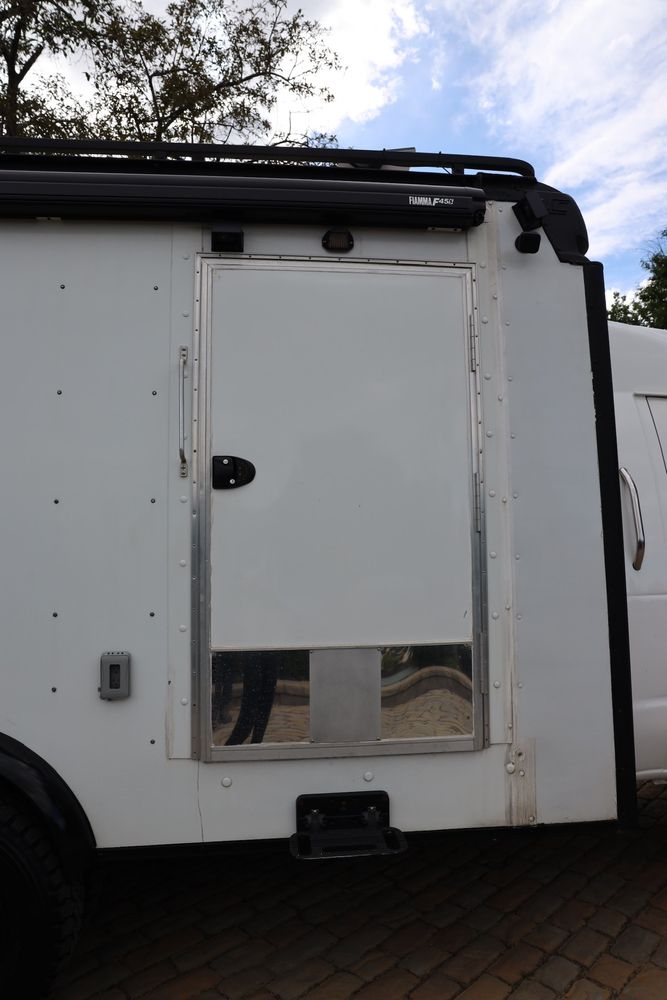

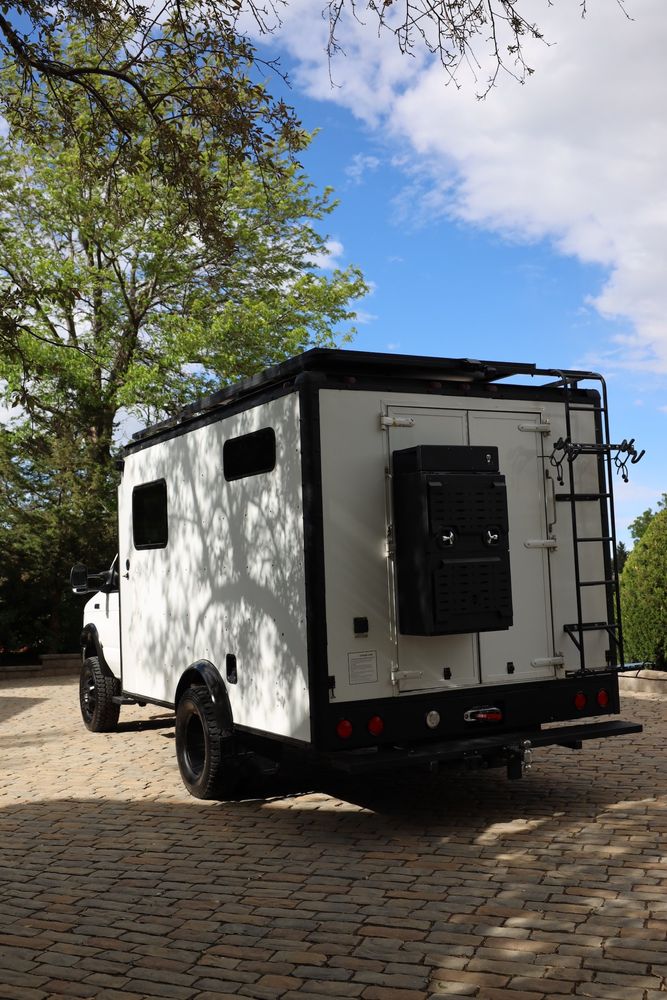

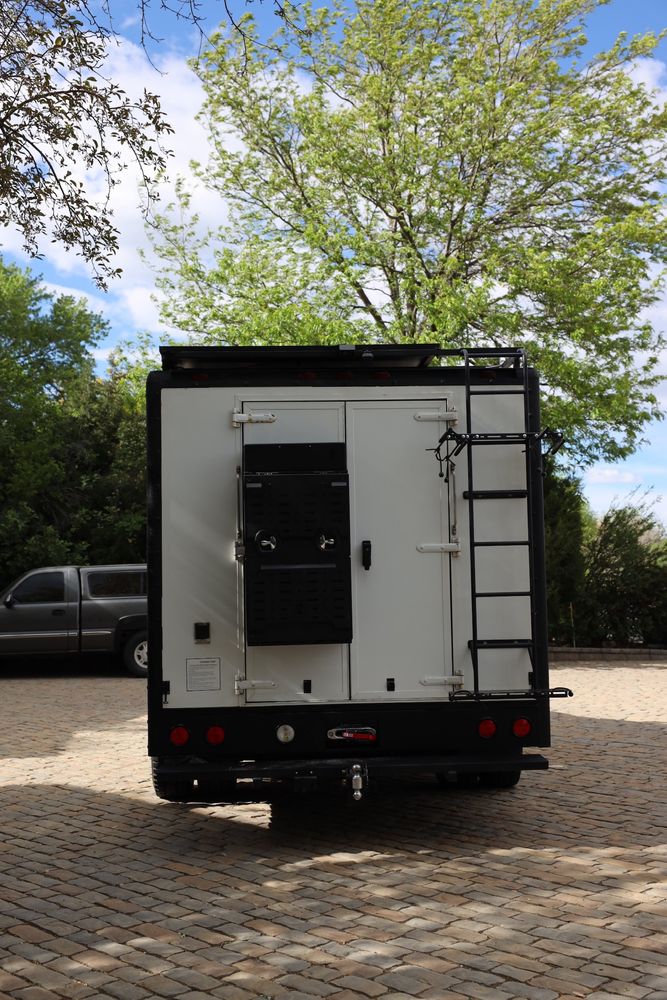

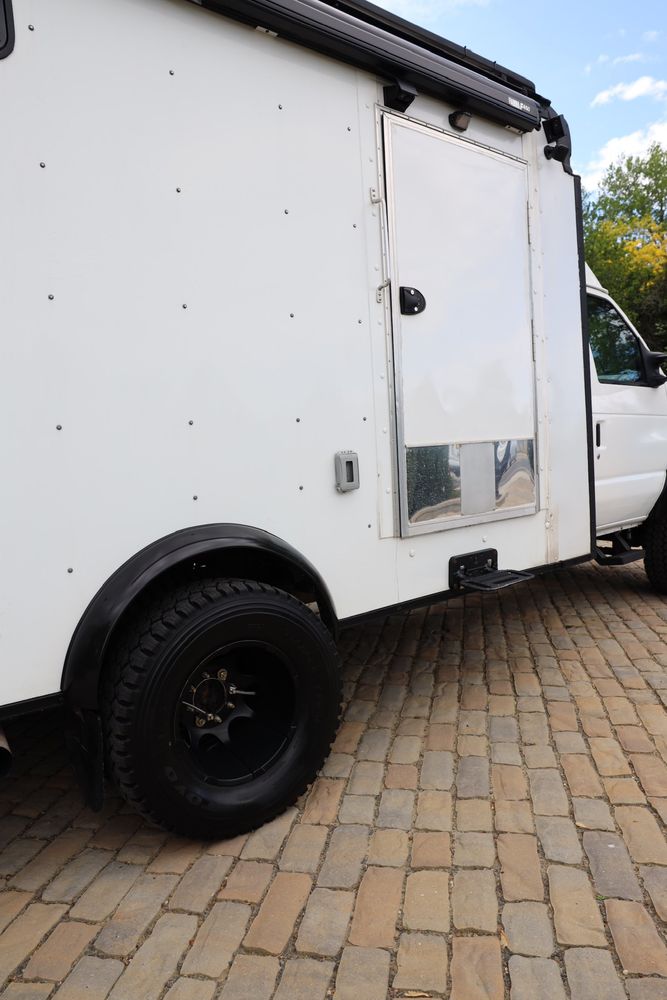

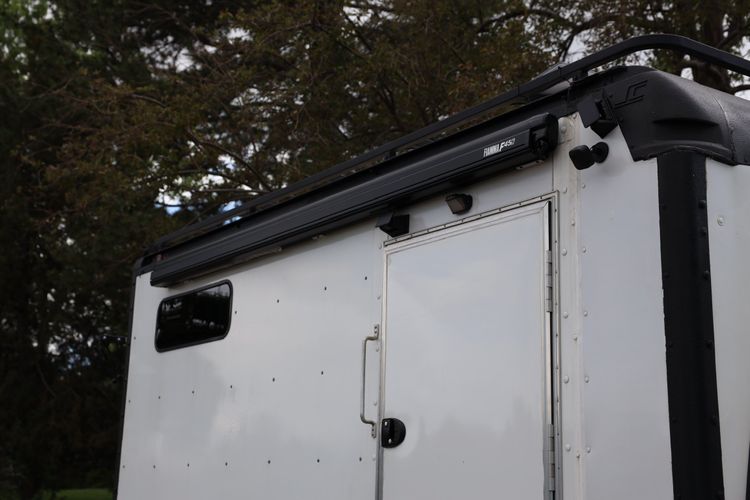

The ambulance box was removed and replaced with an extruded aluminum box with fiberglass walls. One side entry door with barn doors at the rear (4 foot wide)

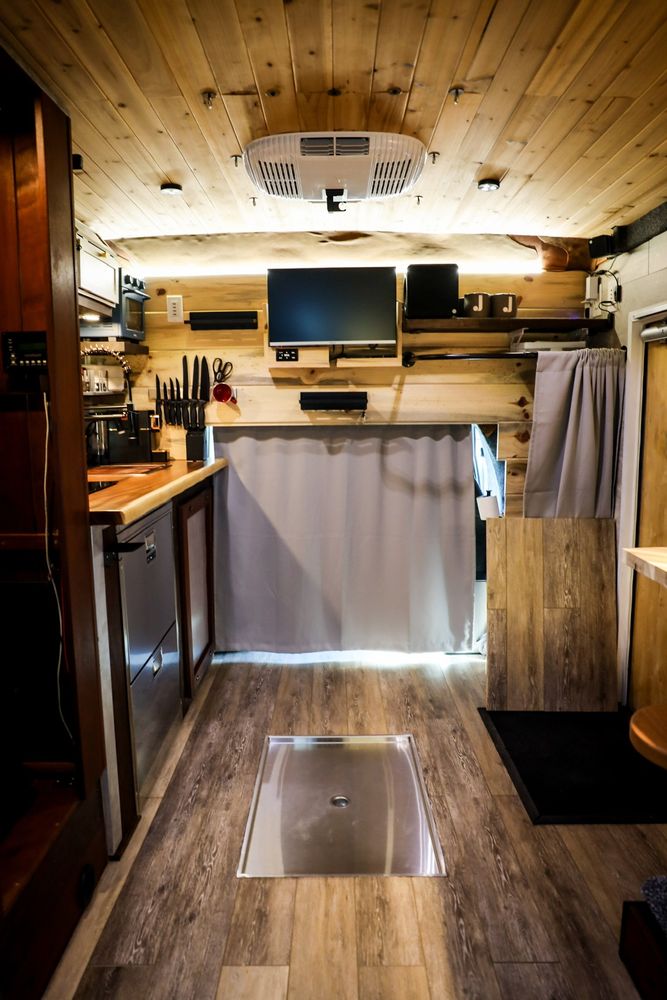

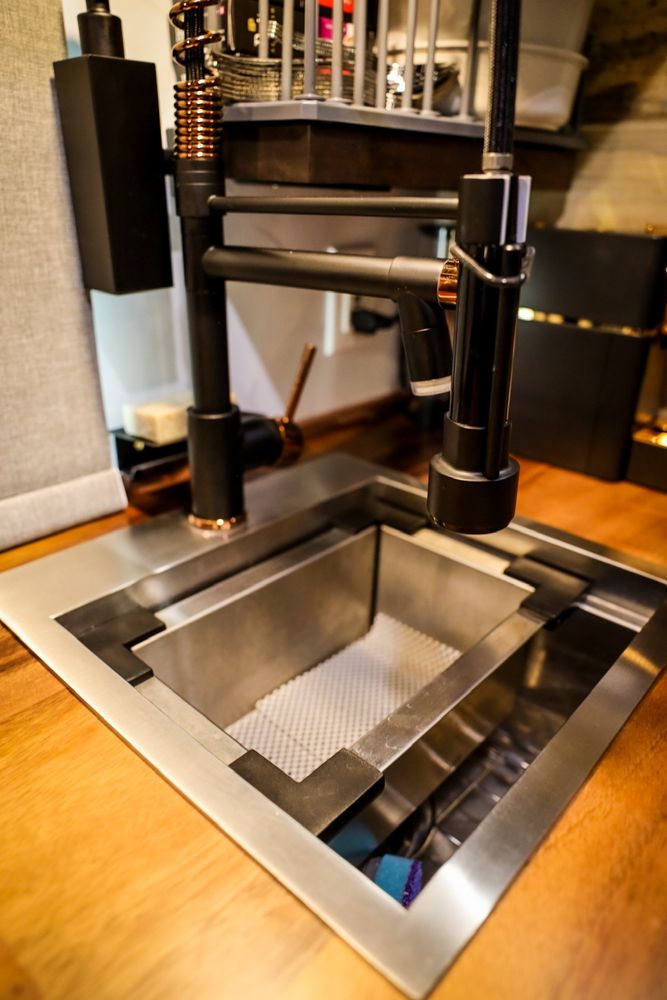

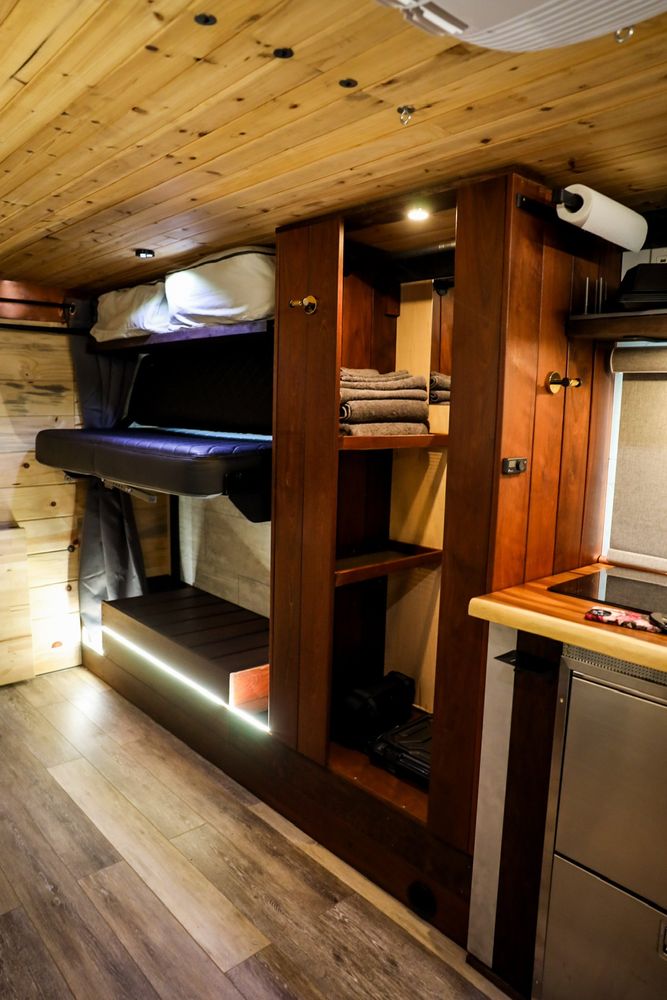

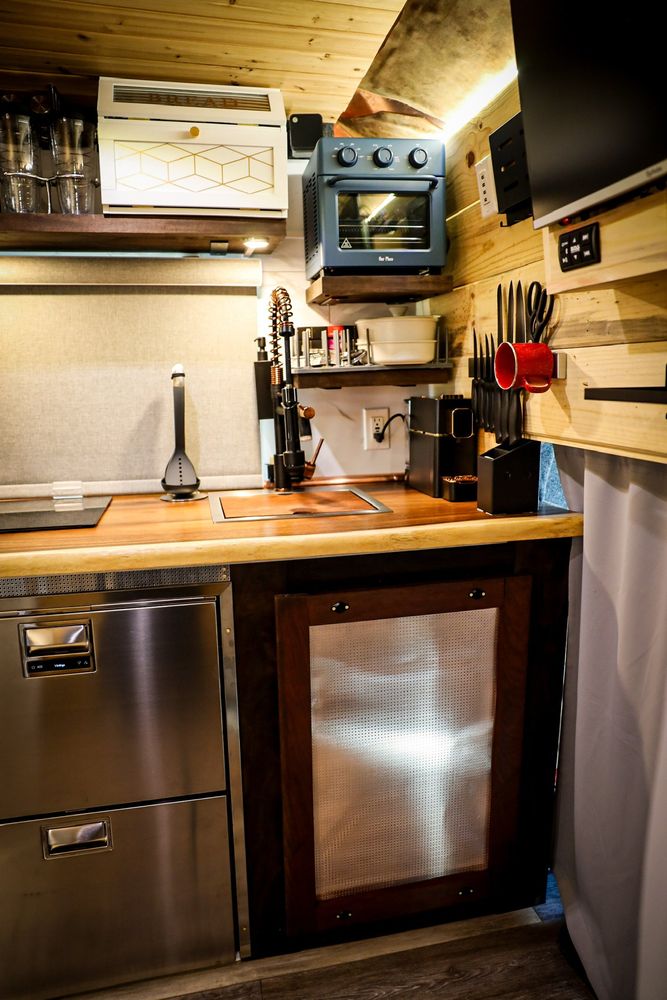

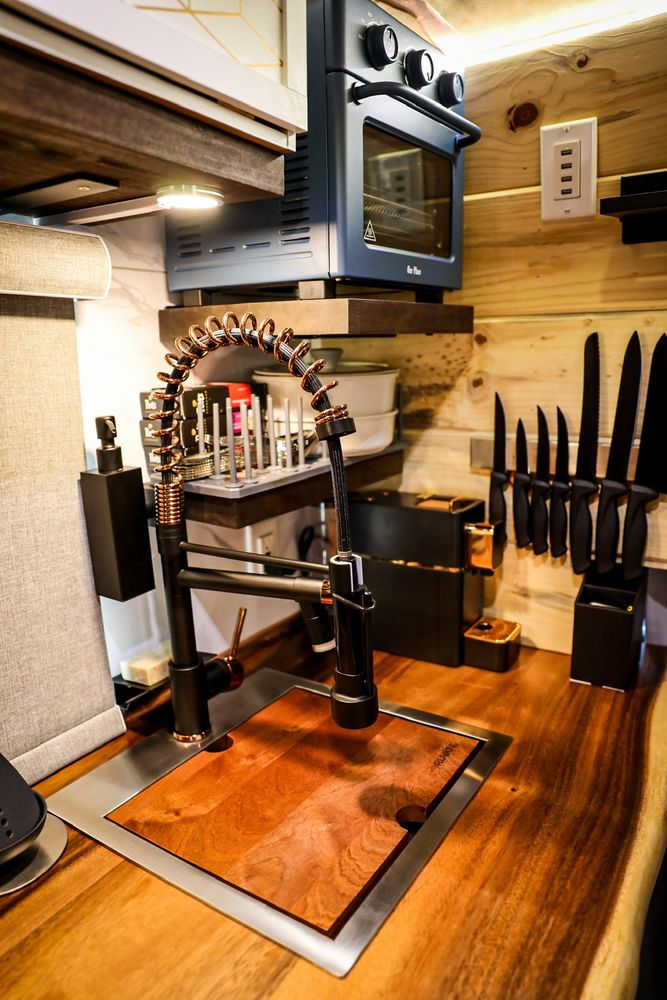

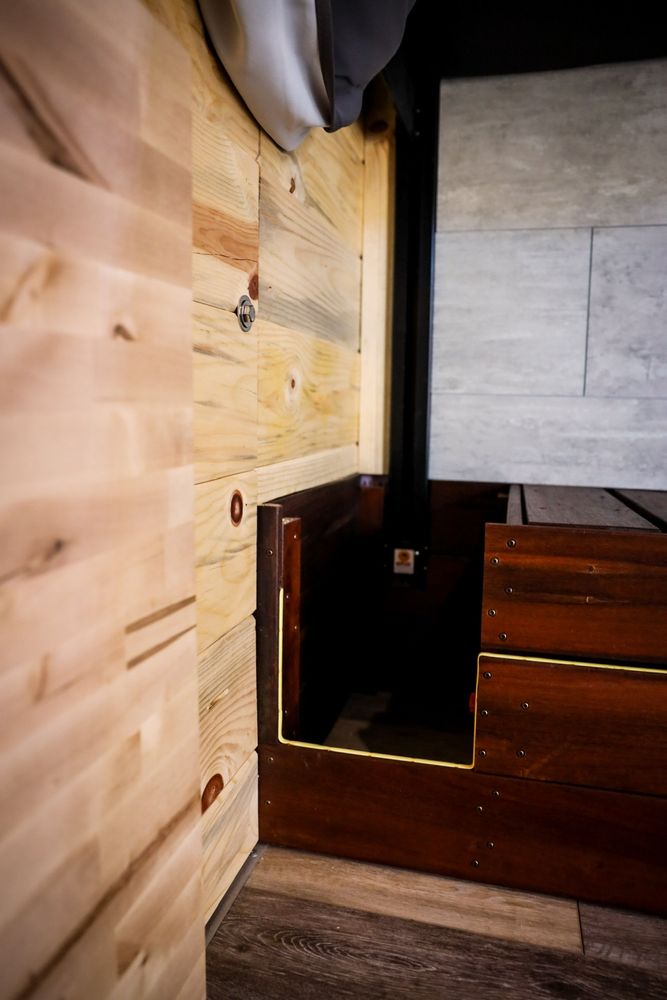

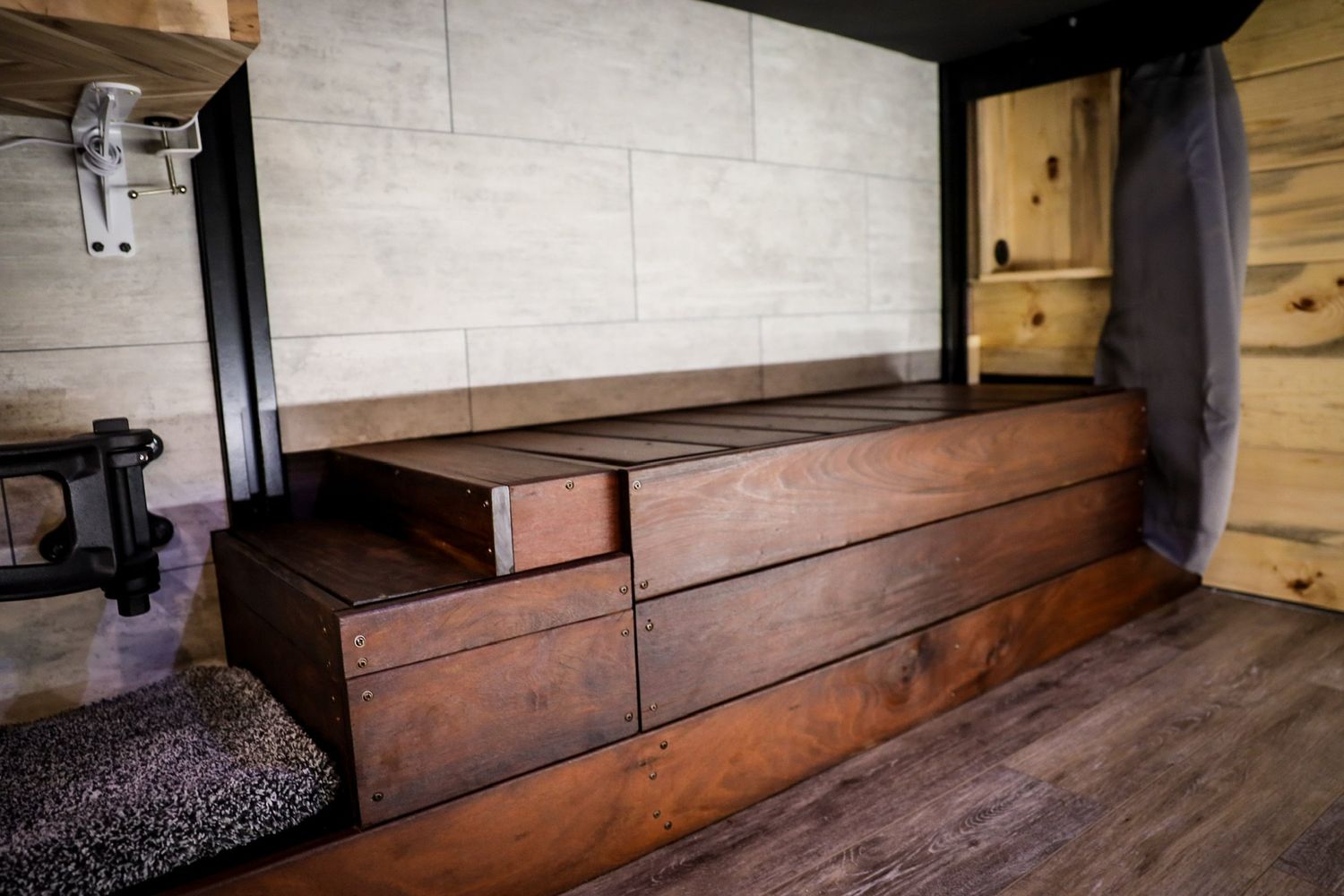

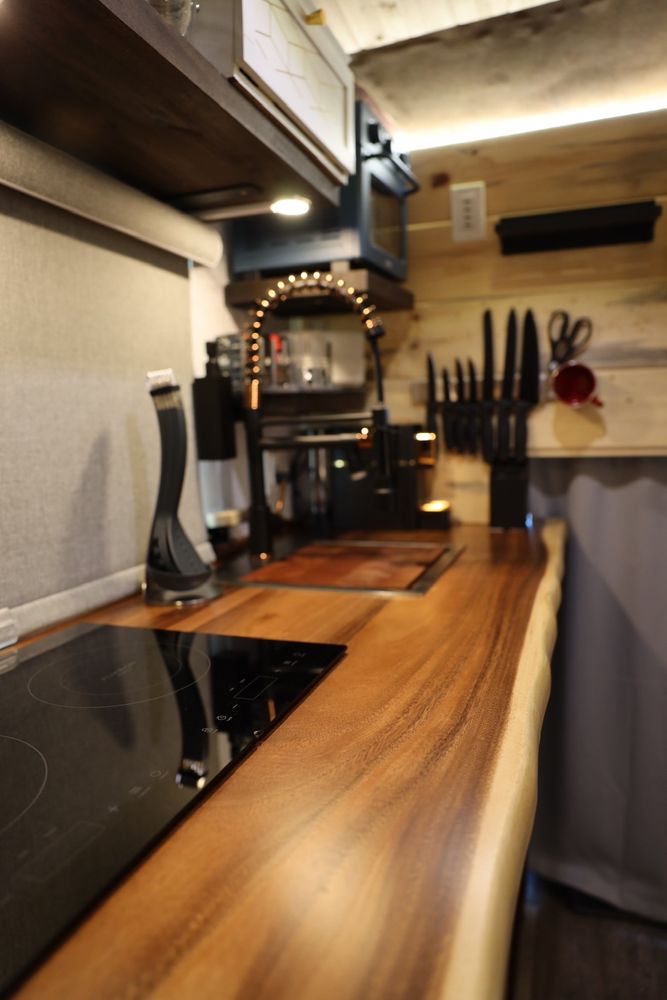

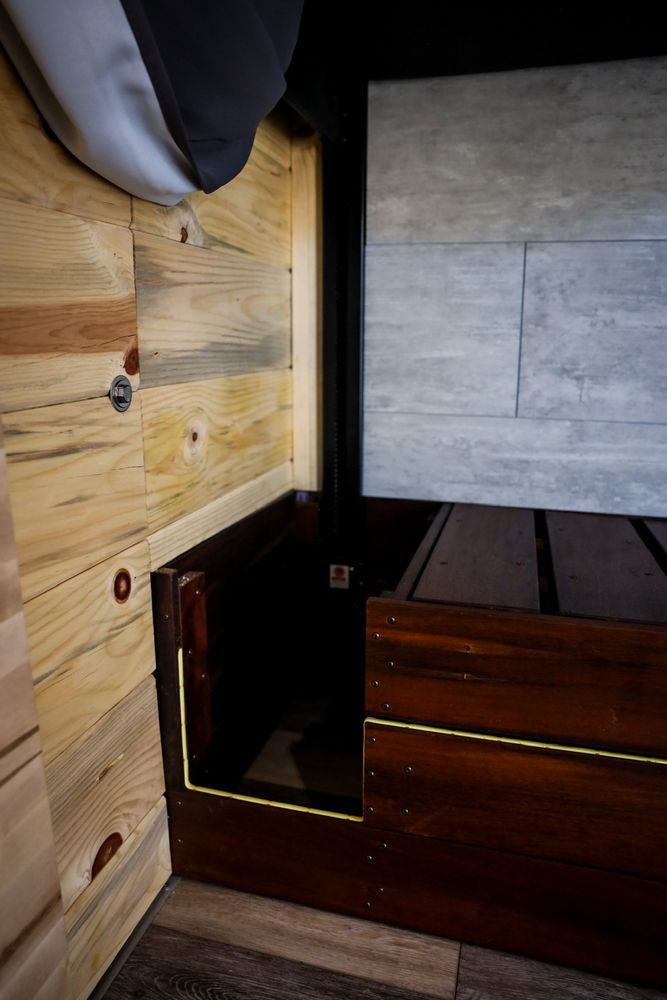

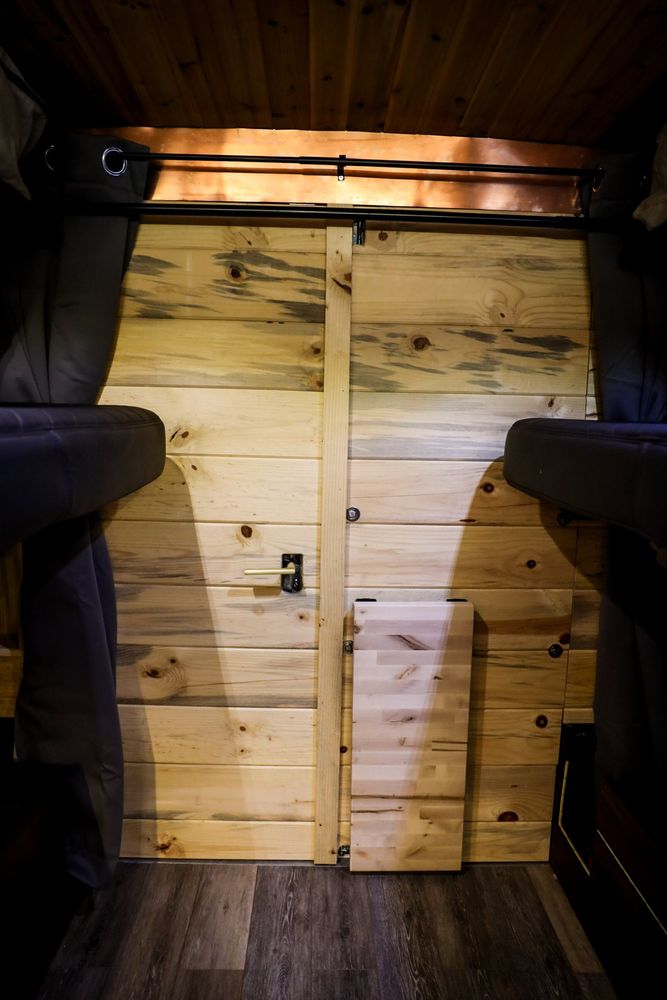

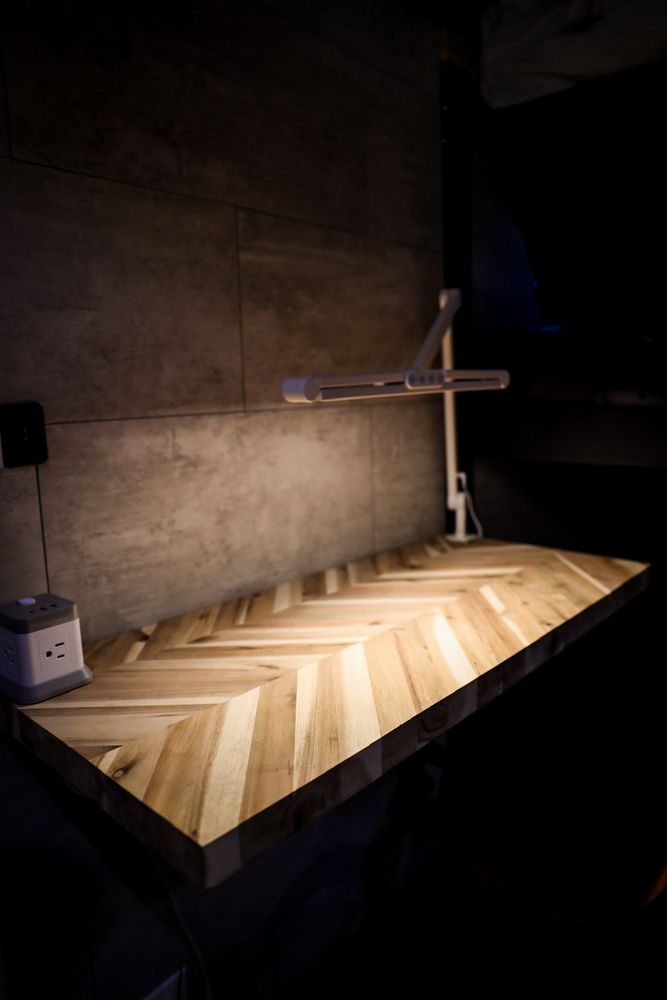

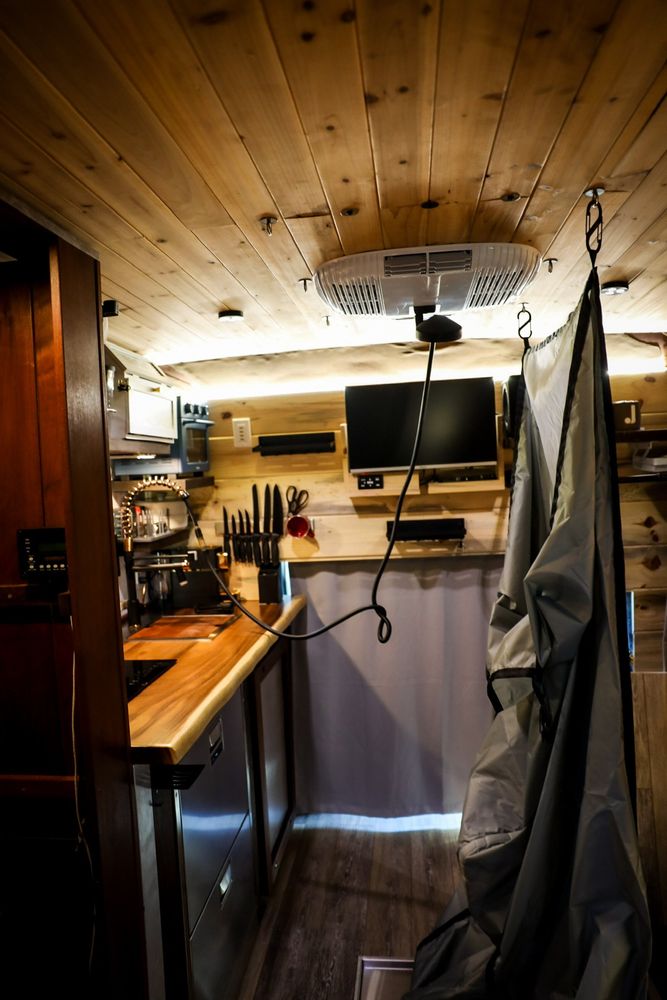

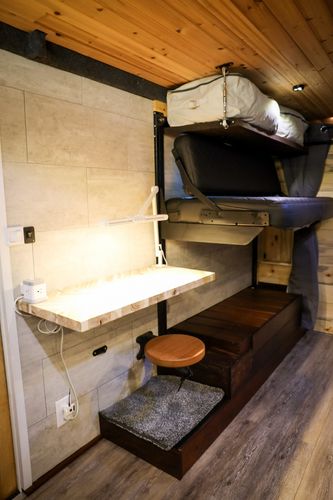

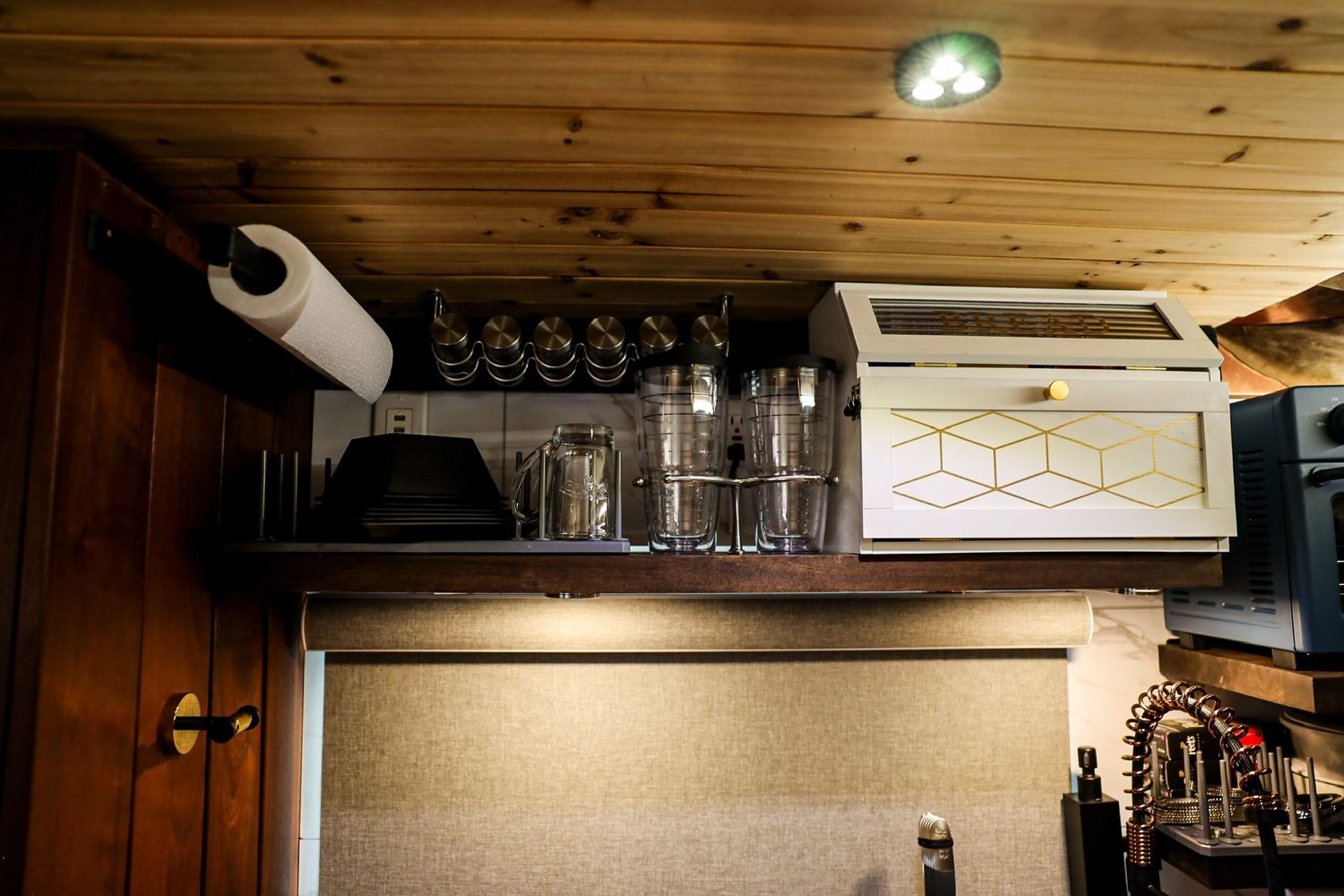

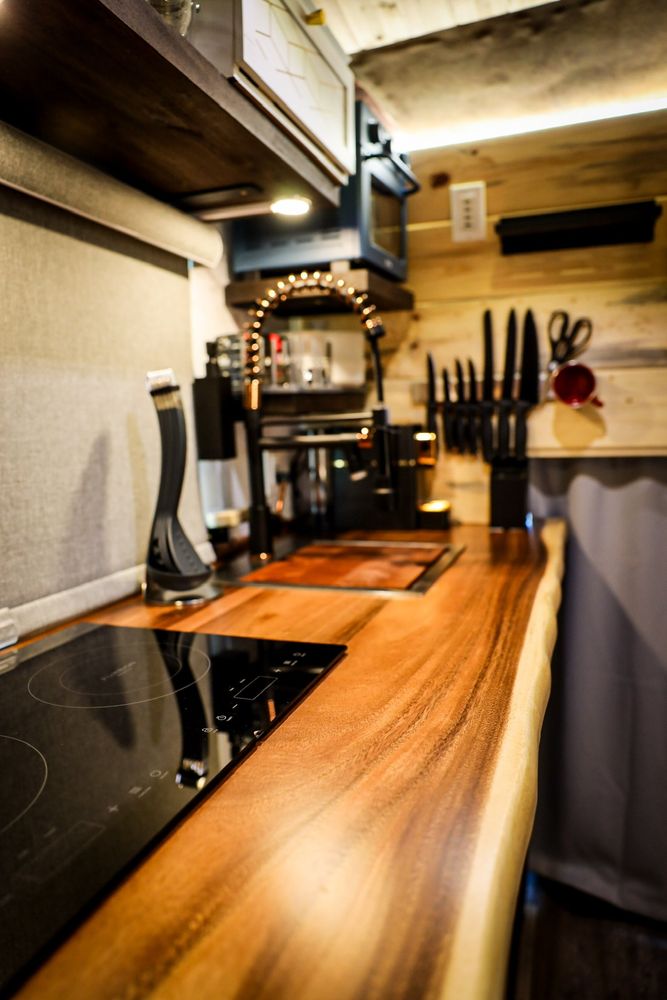

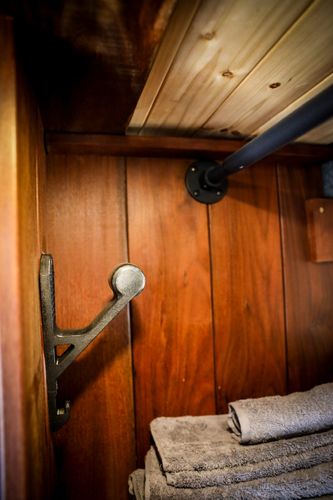

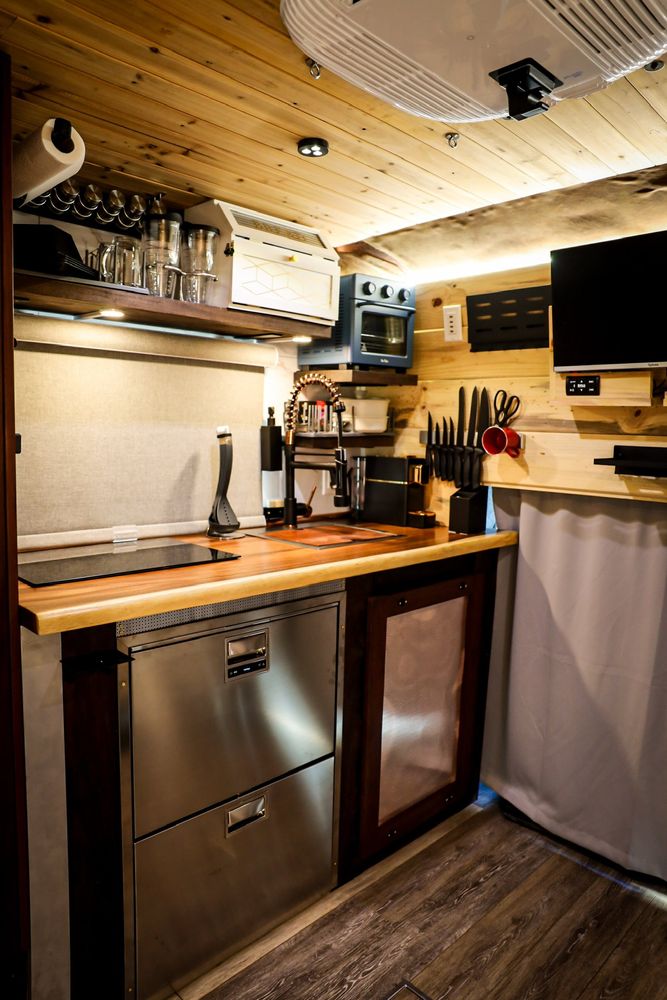

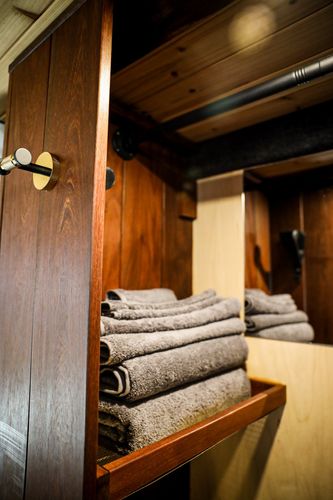

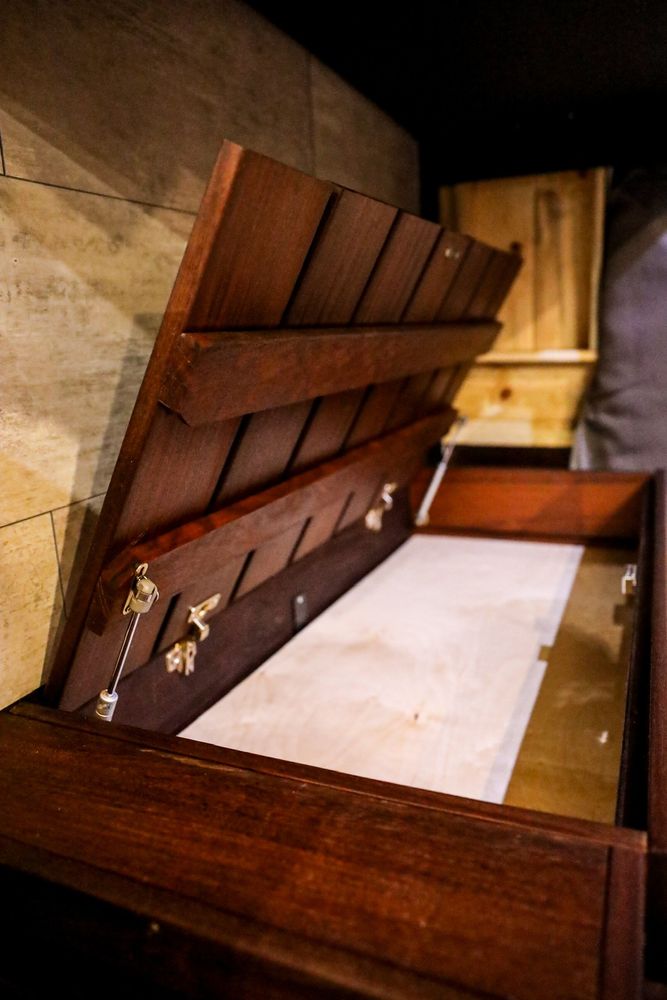

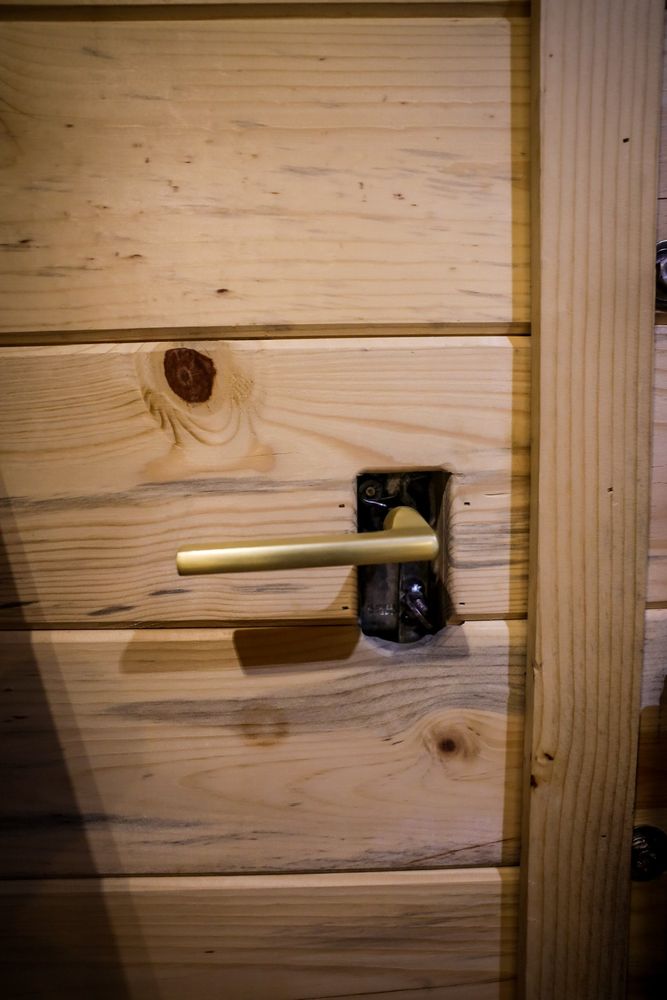

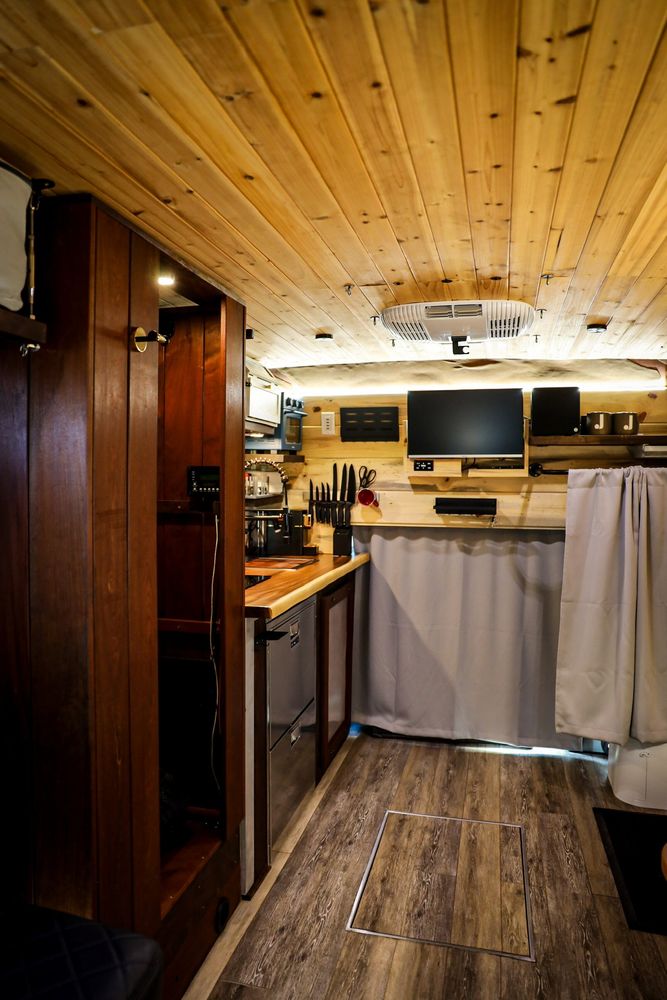

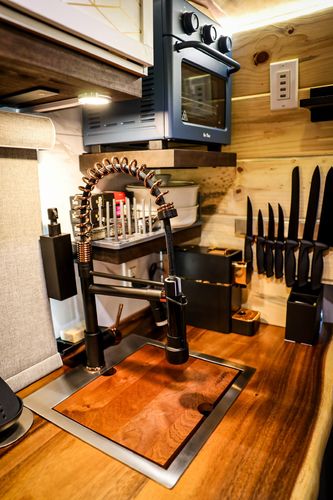

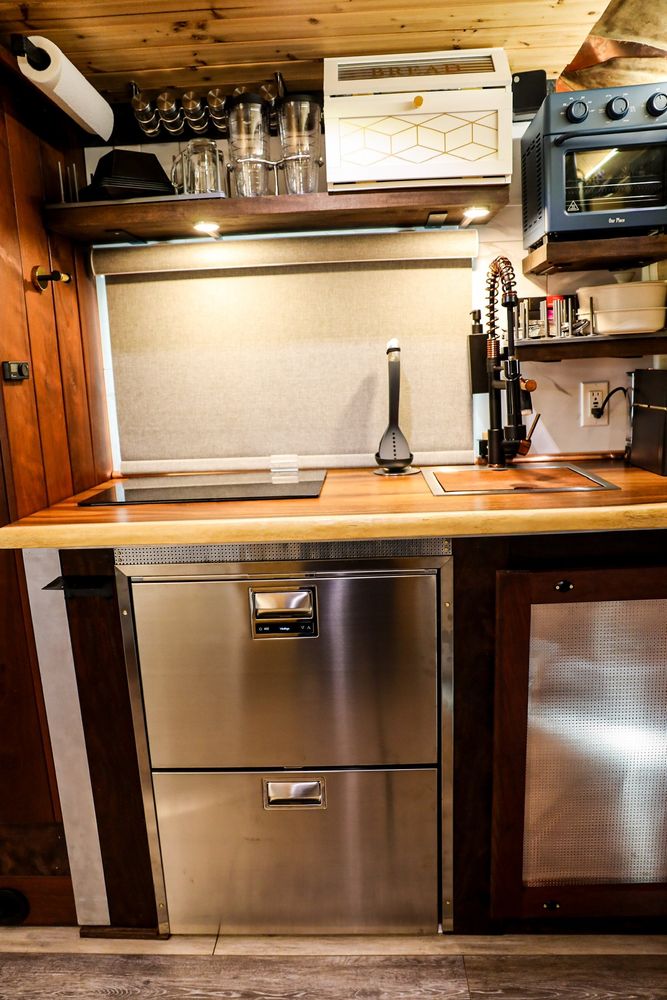

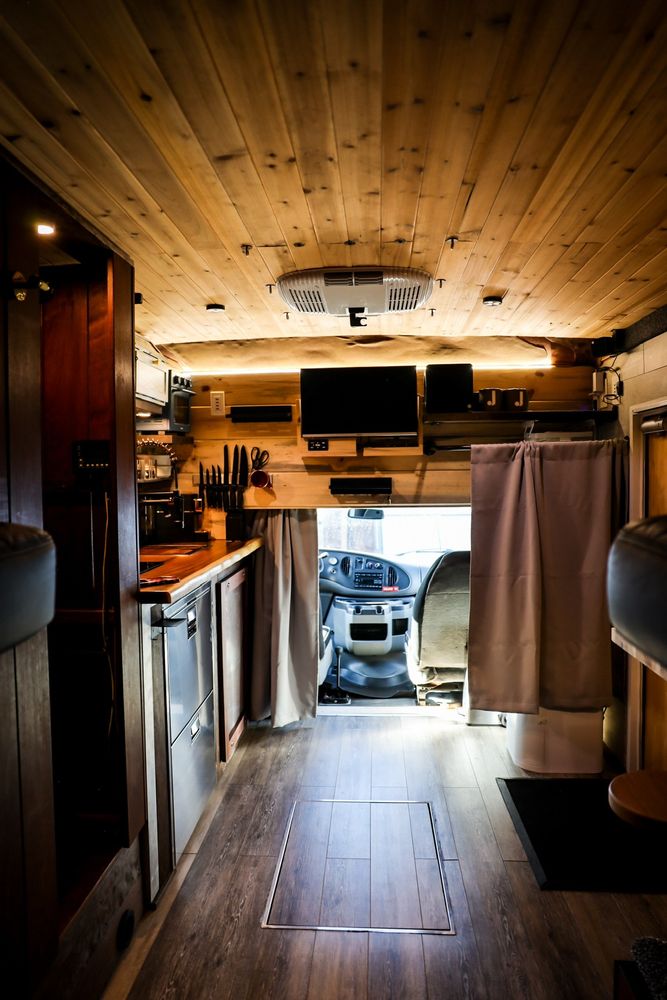

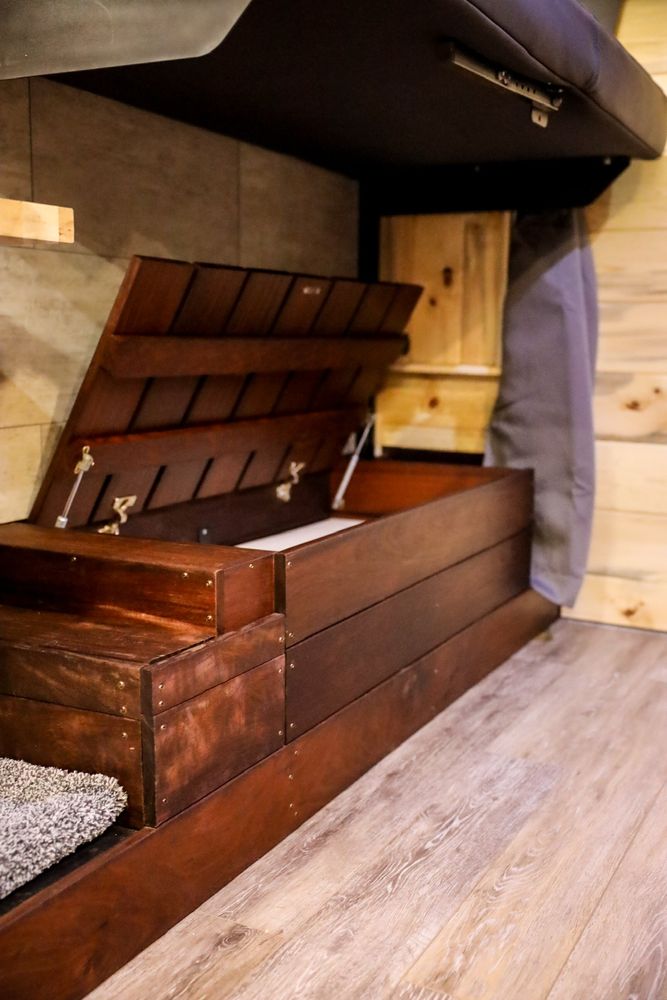

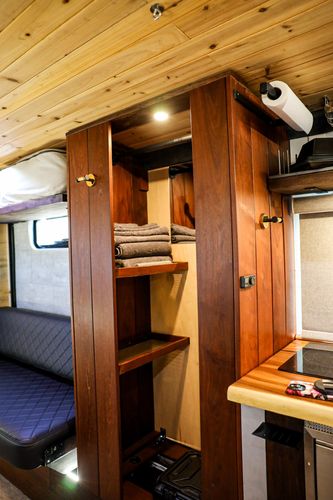

The entire box was wrapped in car audio sound deadening material. The floor and six inches up the walls were treated with waterproofing. Foam board and insulation tape along with fiber to fill any gaps was used for insulation. At 20 degrees below zero the diesel heater maintains 60 degrees interior temperature. Grade A 3/4 inch plywood was used on the walls. The wall tiles are 100% water proof. The ceiling, front and rear walls are knotty Pine tongue n groove. The under-bed storage and heated closet are made with ipe, a Brazilian hardwood that is waterproof. The galley features a rounded butcher block counter with bright white backsplash.

PLUMBING

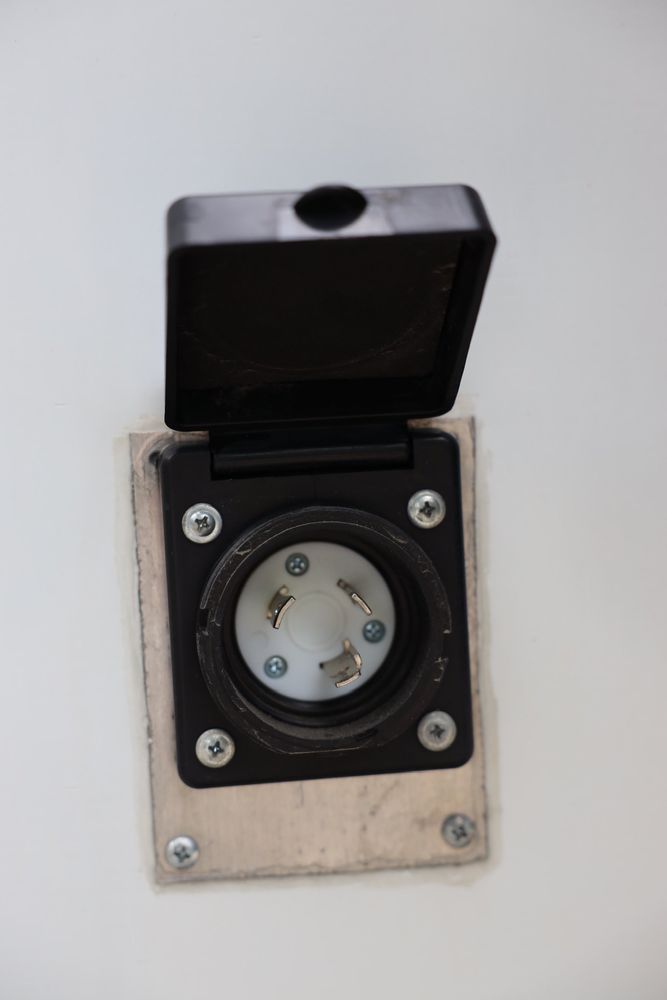

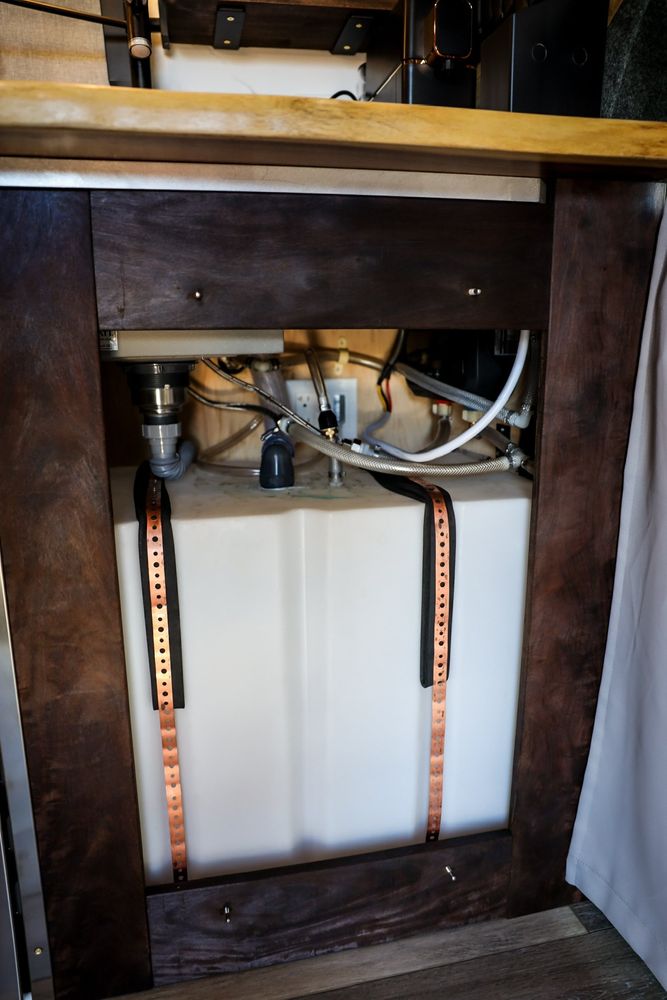

On the interior you have 40 gallons of fresh water. With the ability to also run city water.

Being built for winter camping there is not a grey tank to freeze (one can easily be added in the future)

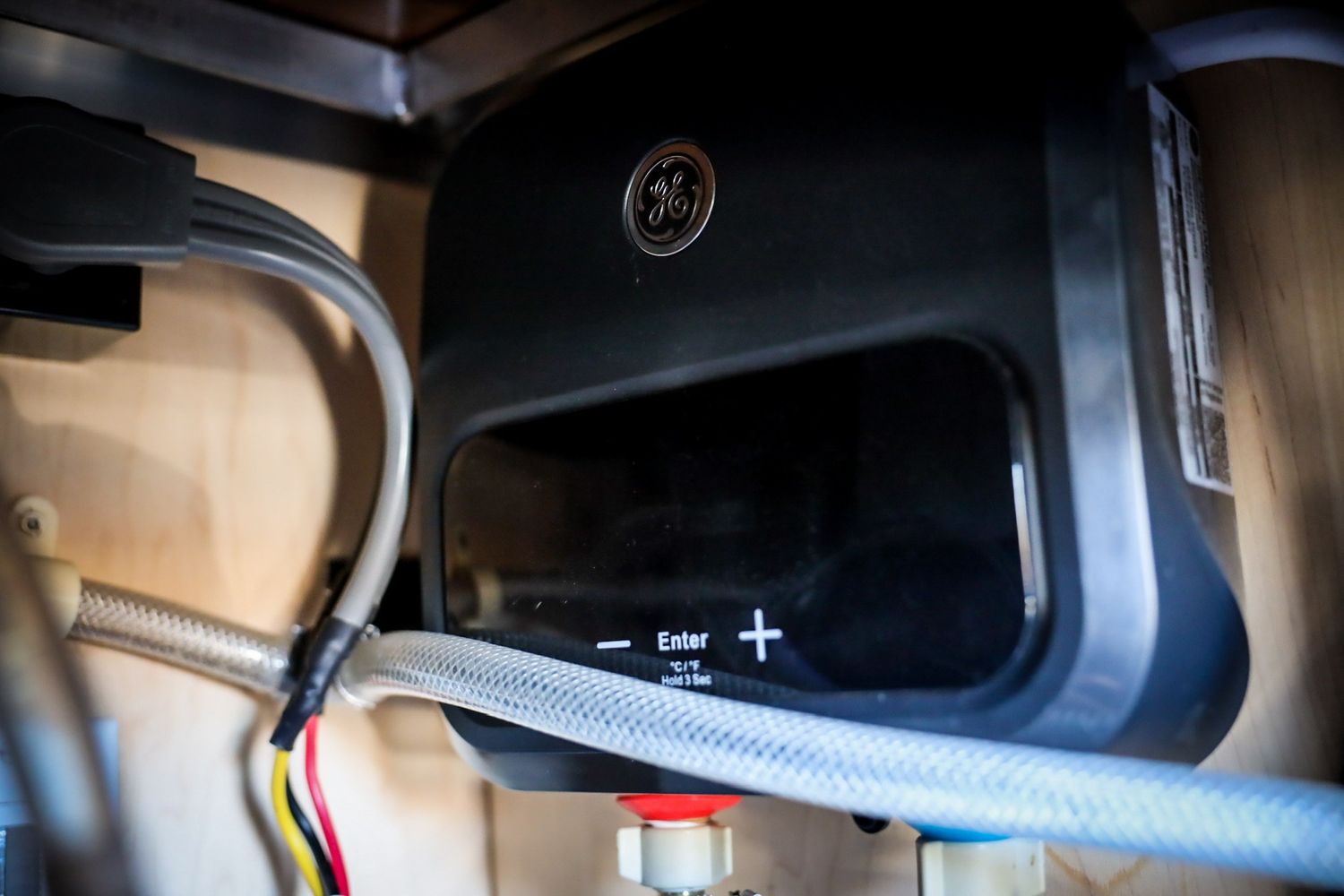

Instant hot water heater that works great at lower water pressures.

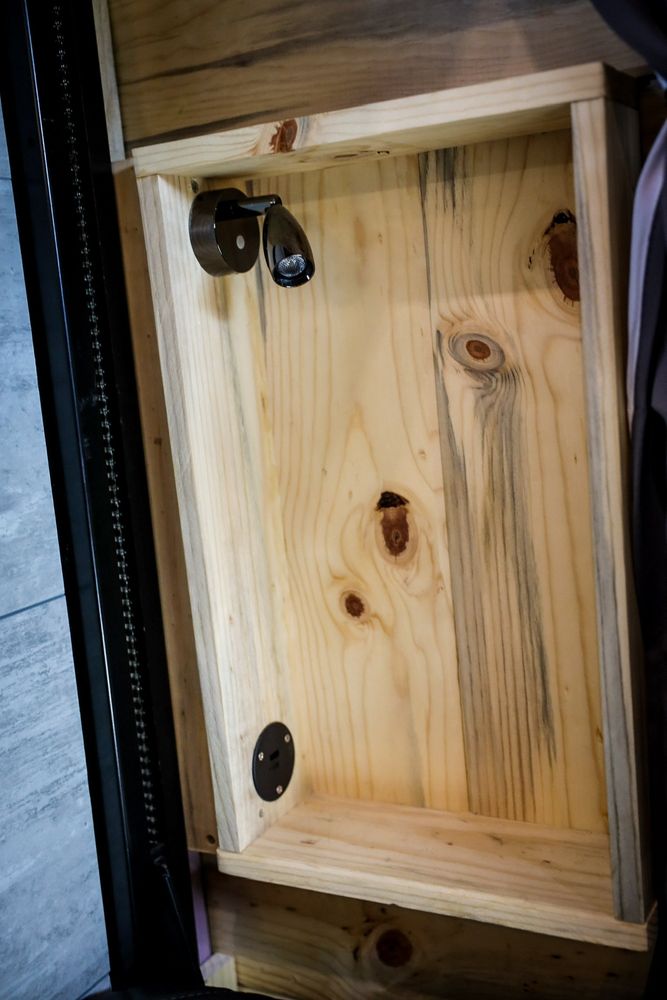

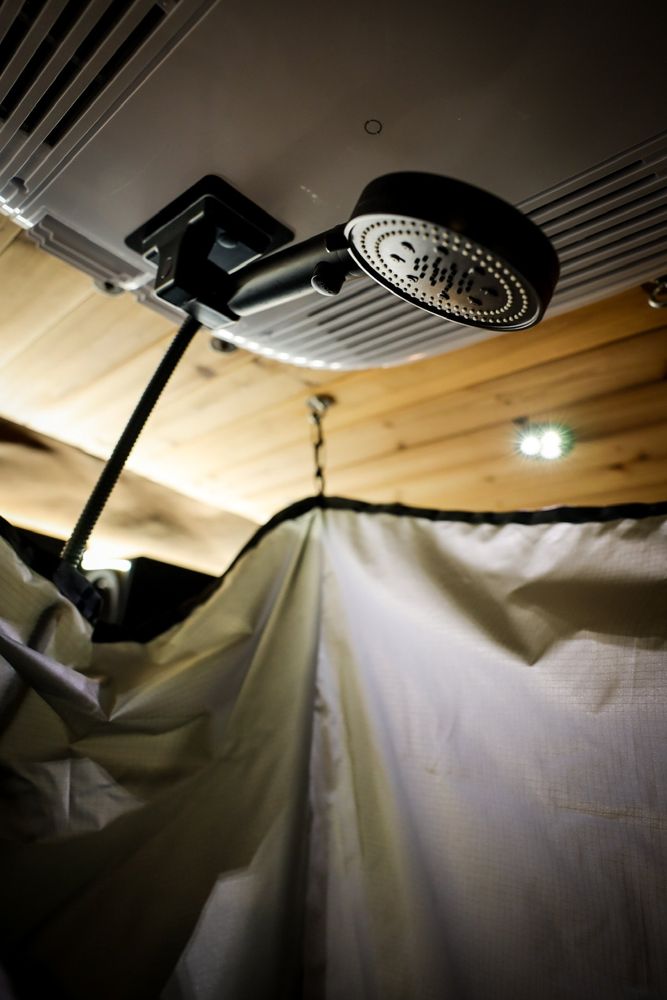

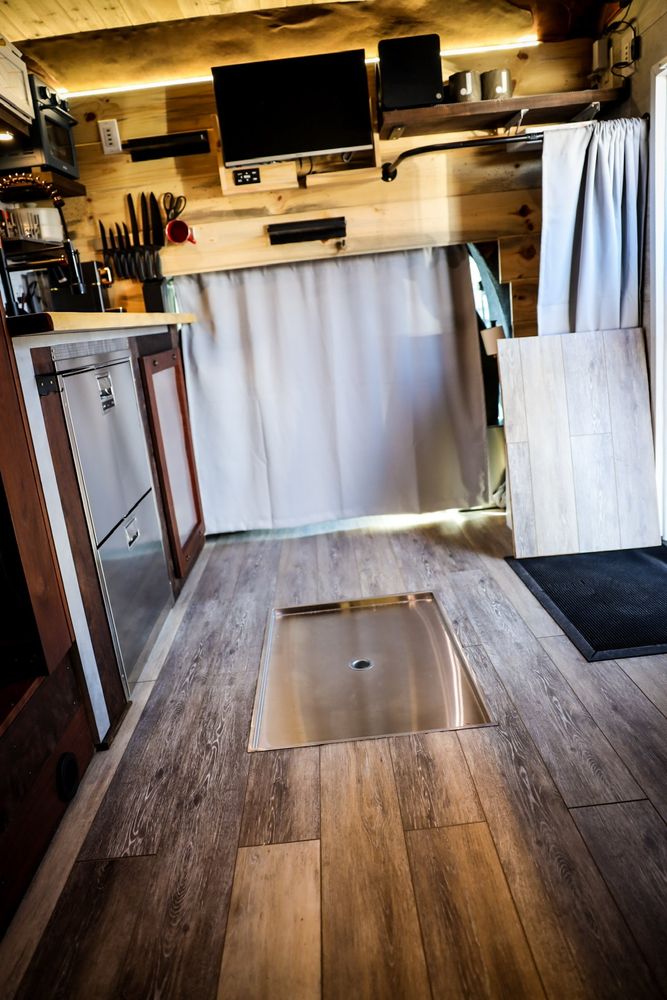

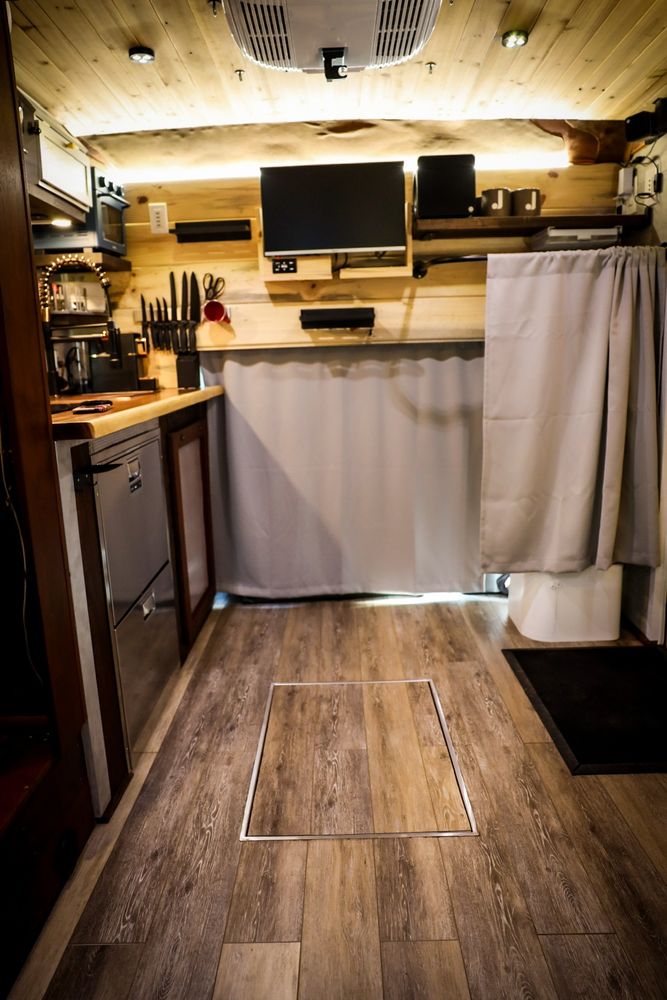

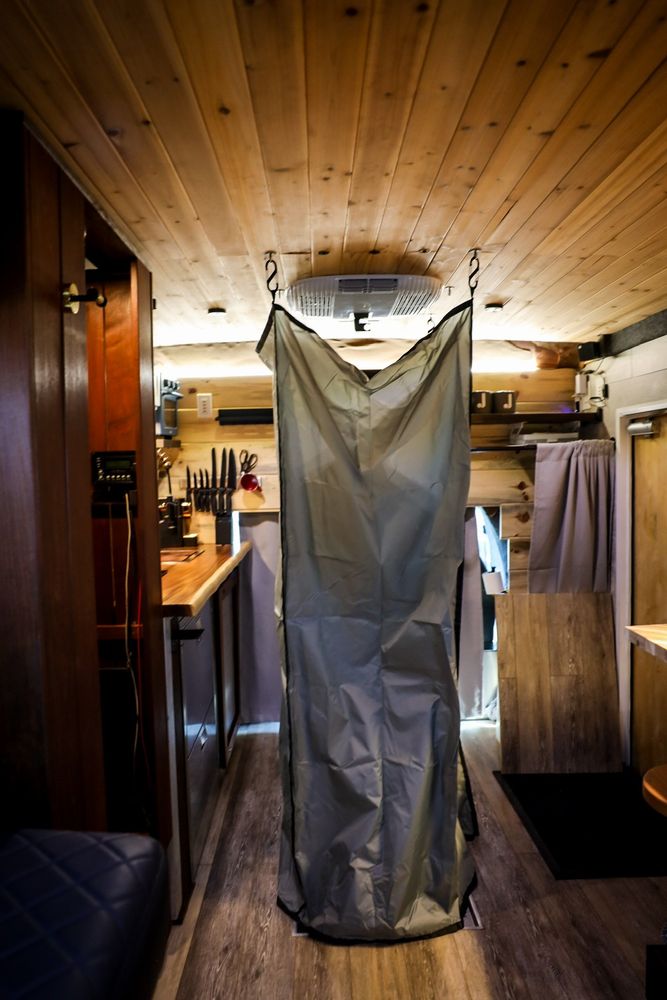

The shower pan is hidden in the floor and accessed by pulling up a panel. The shower head attaches to the sink faucet.

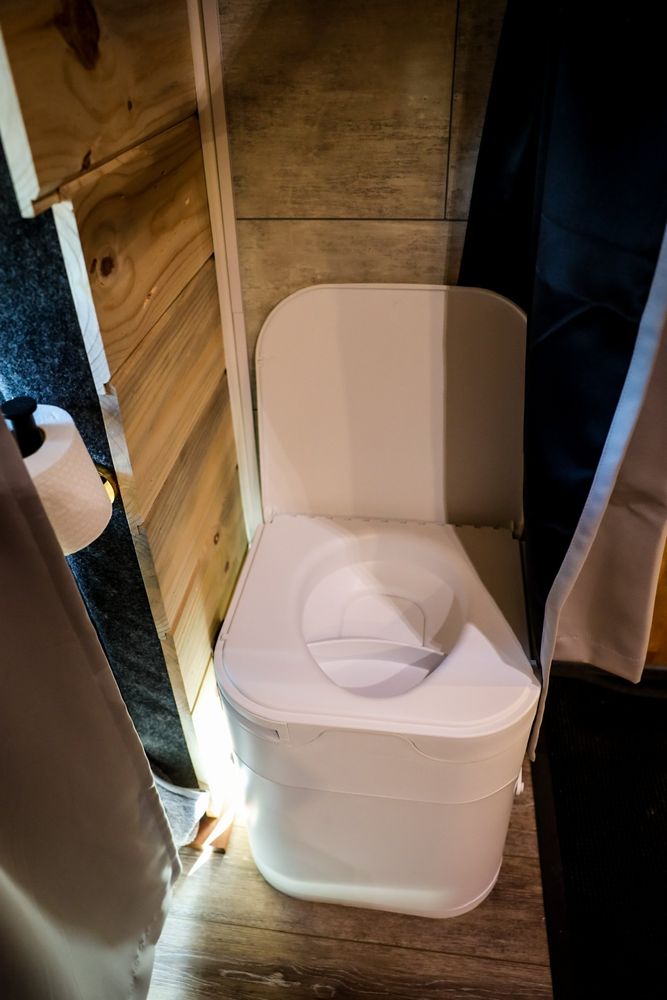

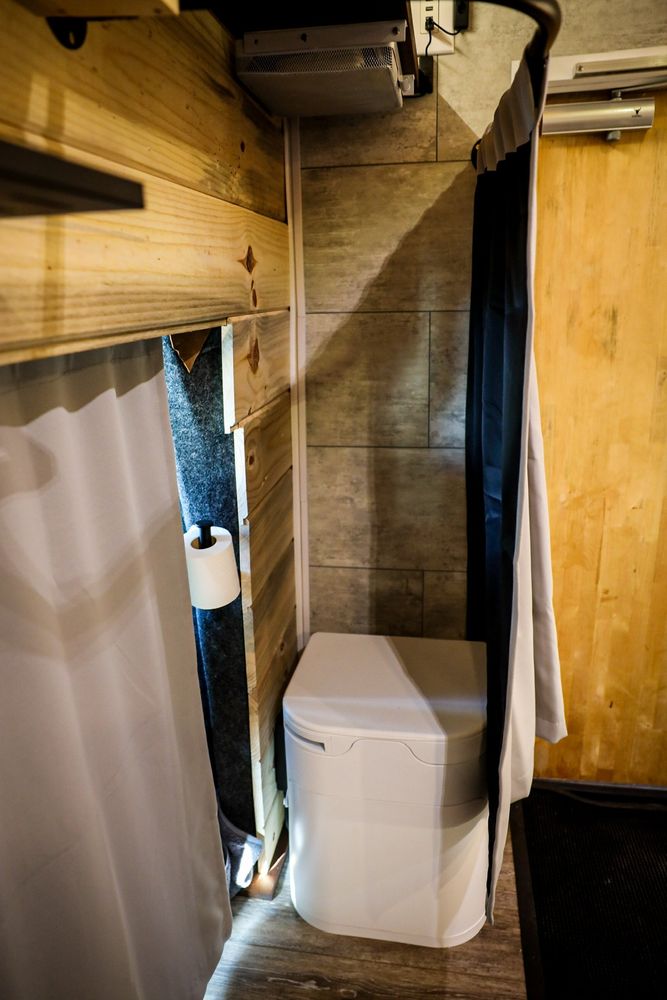

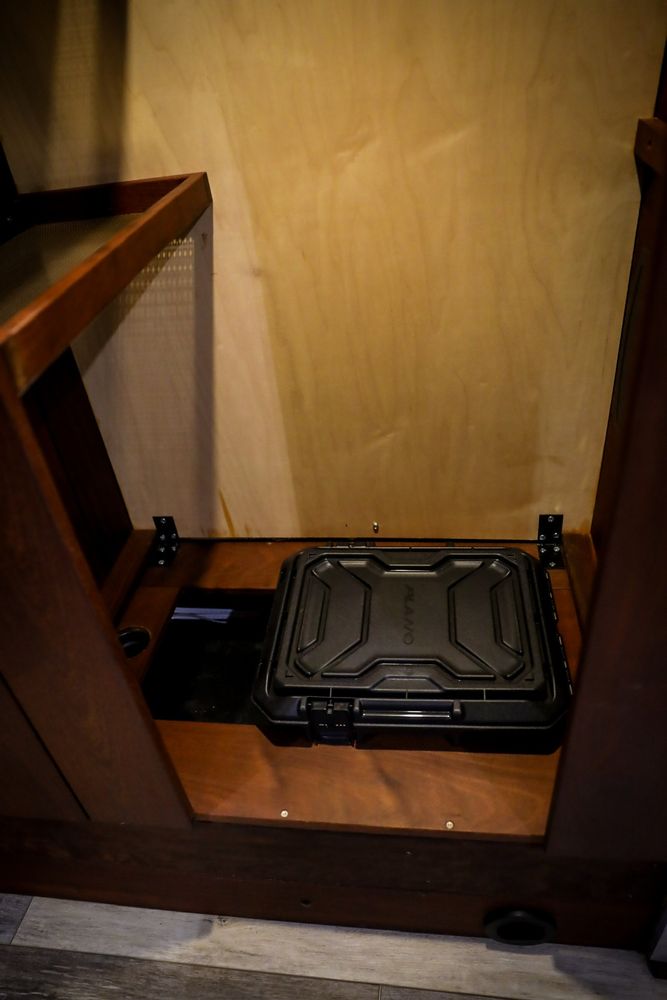

OGO composting toilet

All waterlines conveniently winterized with onboard air.

ELECTRICAL

All electric components and wiring are marine grade.

This is a 48 volt system with a Victron DC/DC converter to step down for the 12 volt needs.

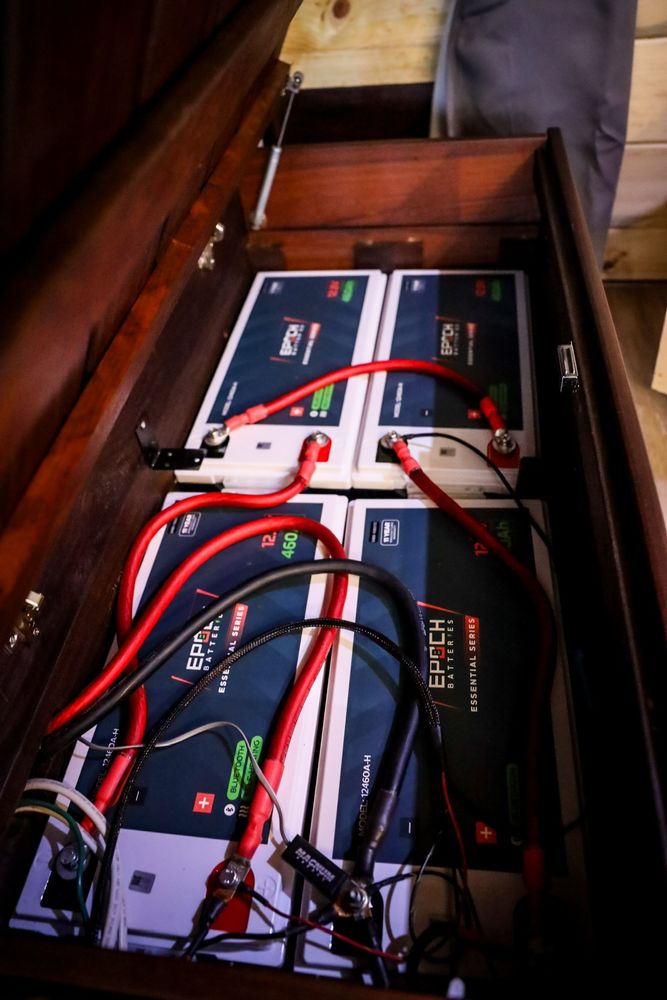

-Four 460 amp hour Epoch Bluetooth/ Heated 12 volt batteries equals 1840 amp hours at 12 volts and 460 amp hours at 48 volts.

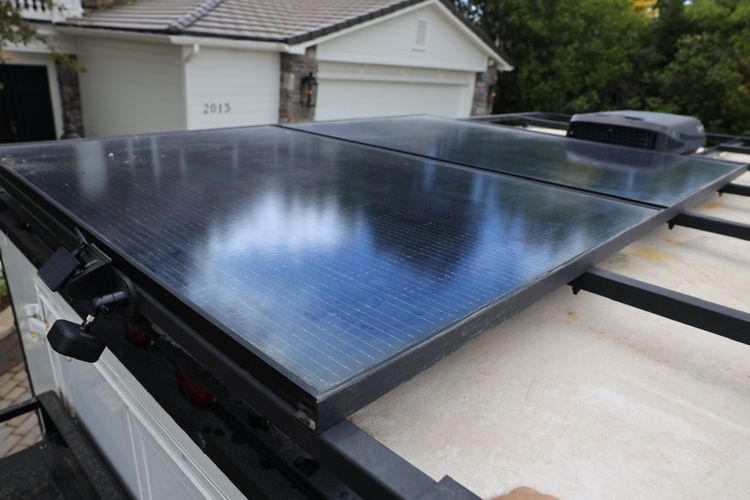

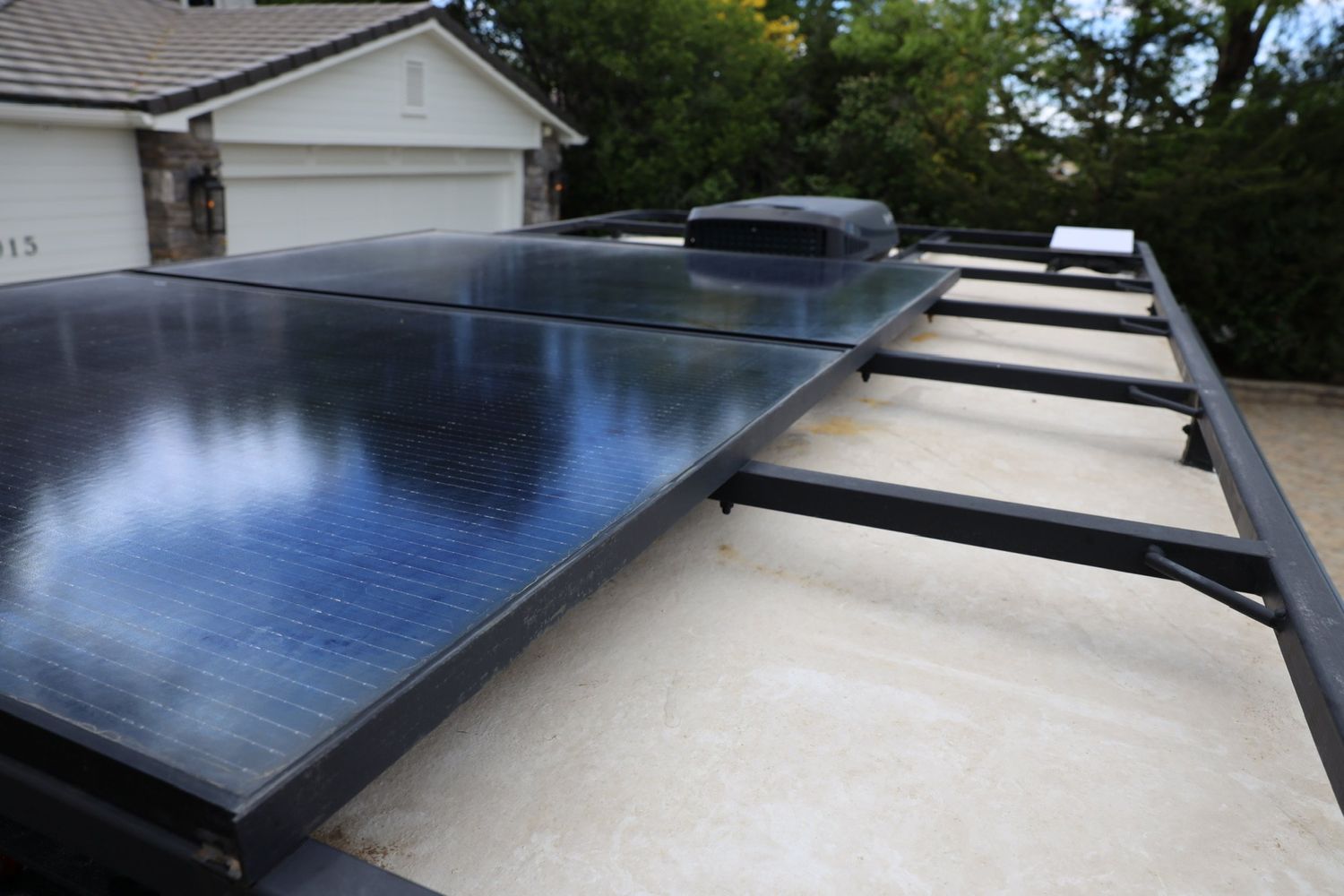

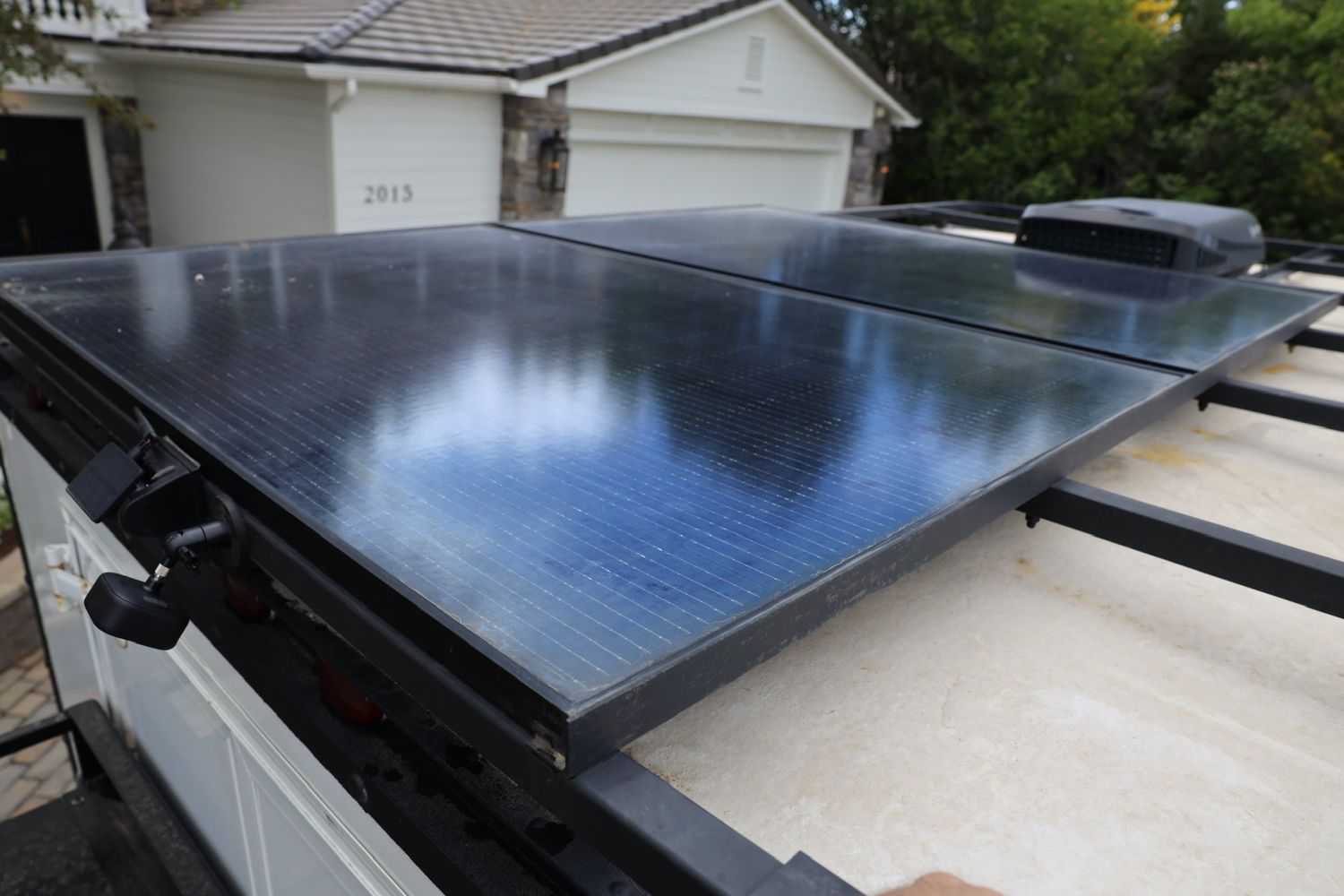

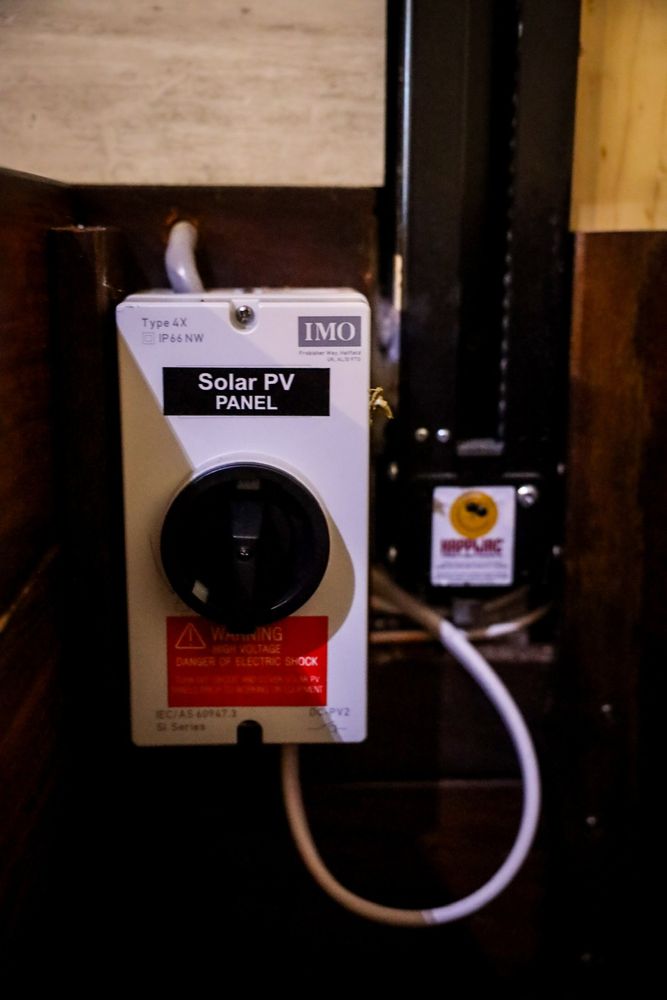

-Solar two 48 volt 400w marine grade panels with Victron smart controller.

With this setup you will never need to plug in or carry a generator. (Water is truly your only limited resource).

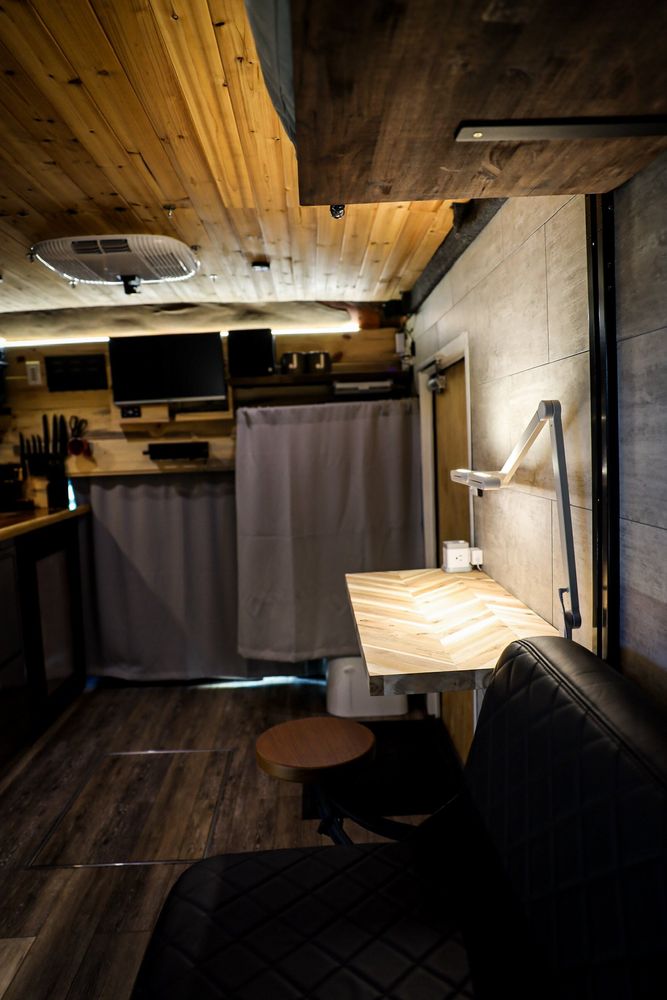

-Roof mounted Rec Pro low profile A/C 13.500 btu

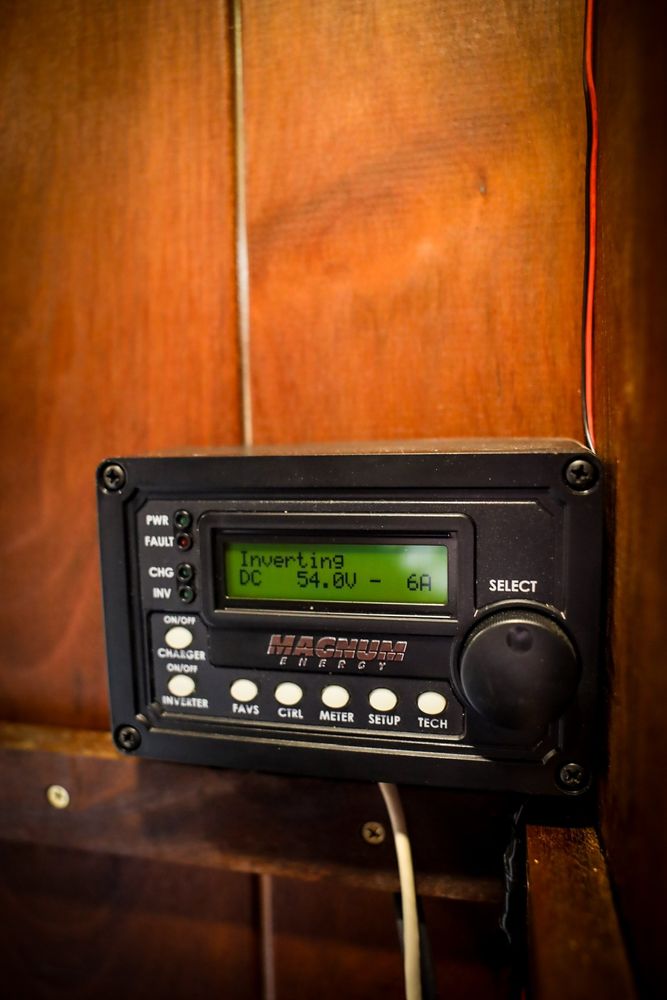

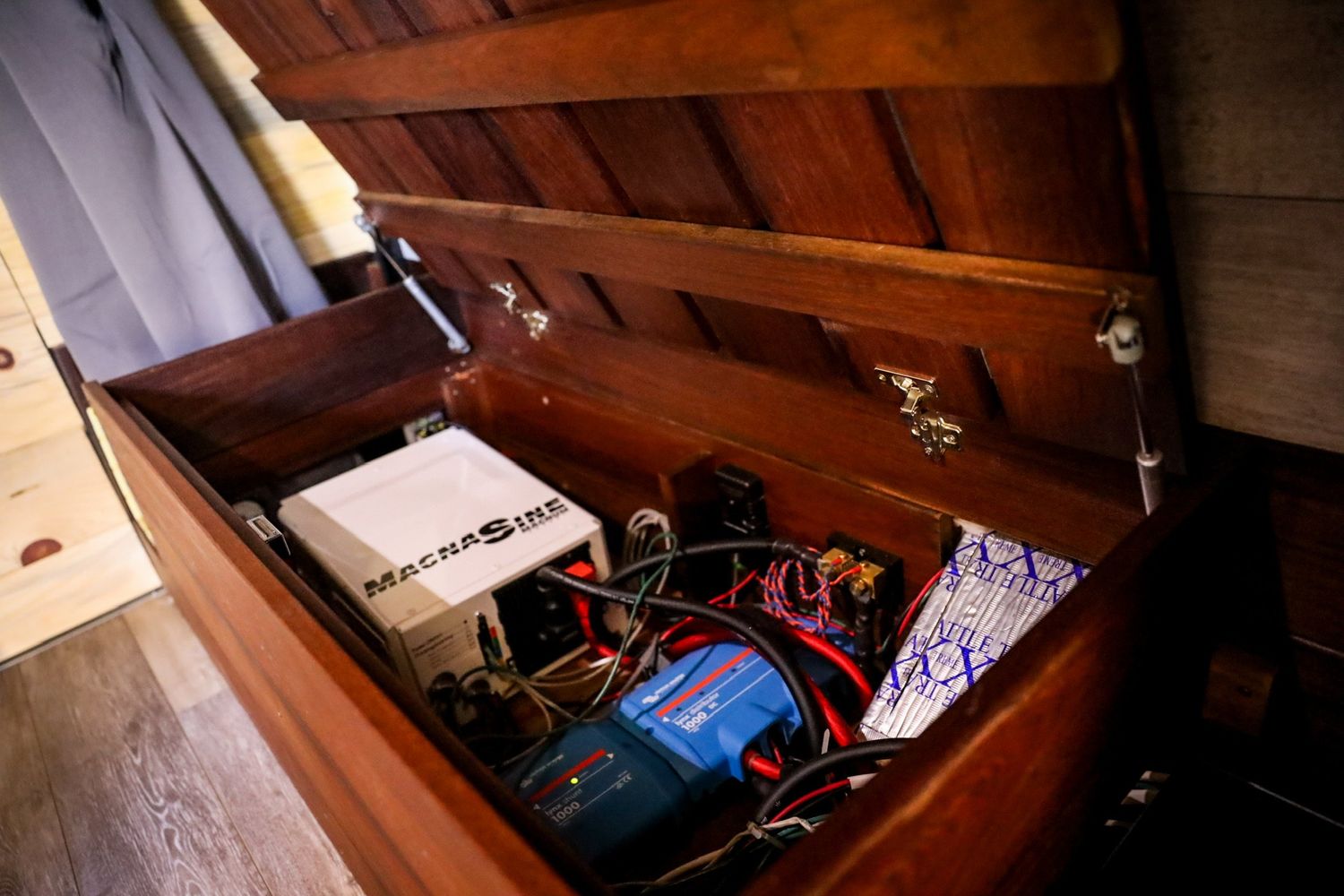

-Magna sine MS4448PAE 48 volt 4400 watt 120-240 inverter

-DC/DC engine charging with Wakespeed and high output alternator

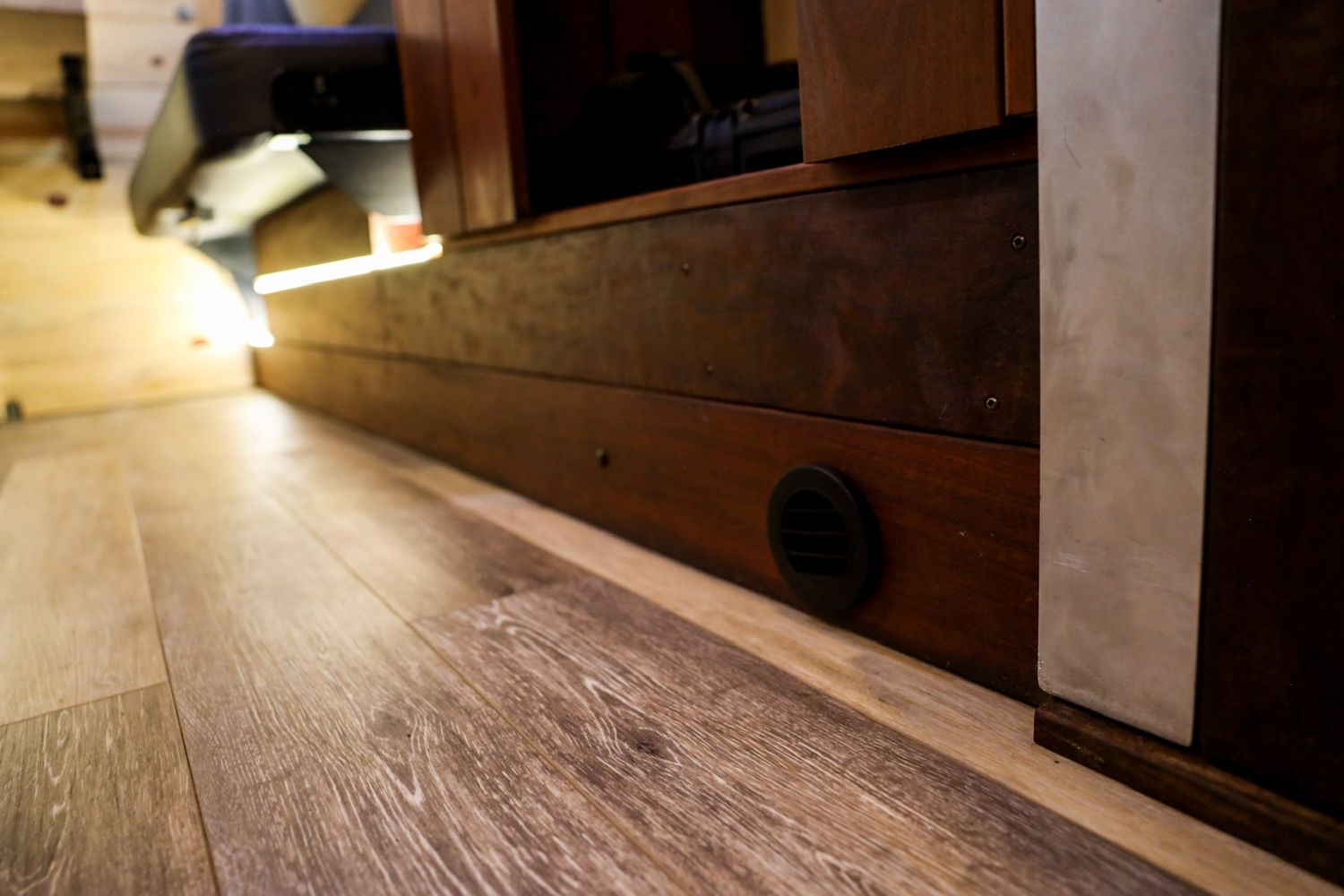

-Espar S3 diesel heater with high altitude and controller. With venting into closet for wet clothes.

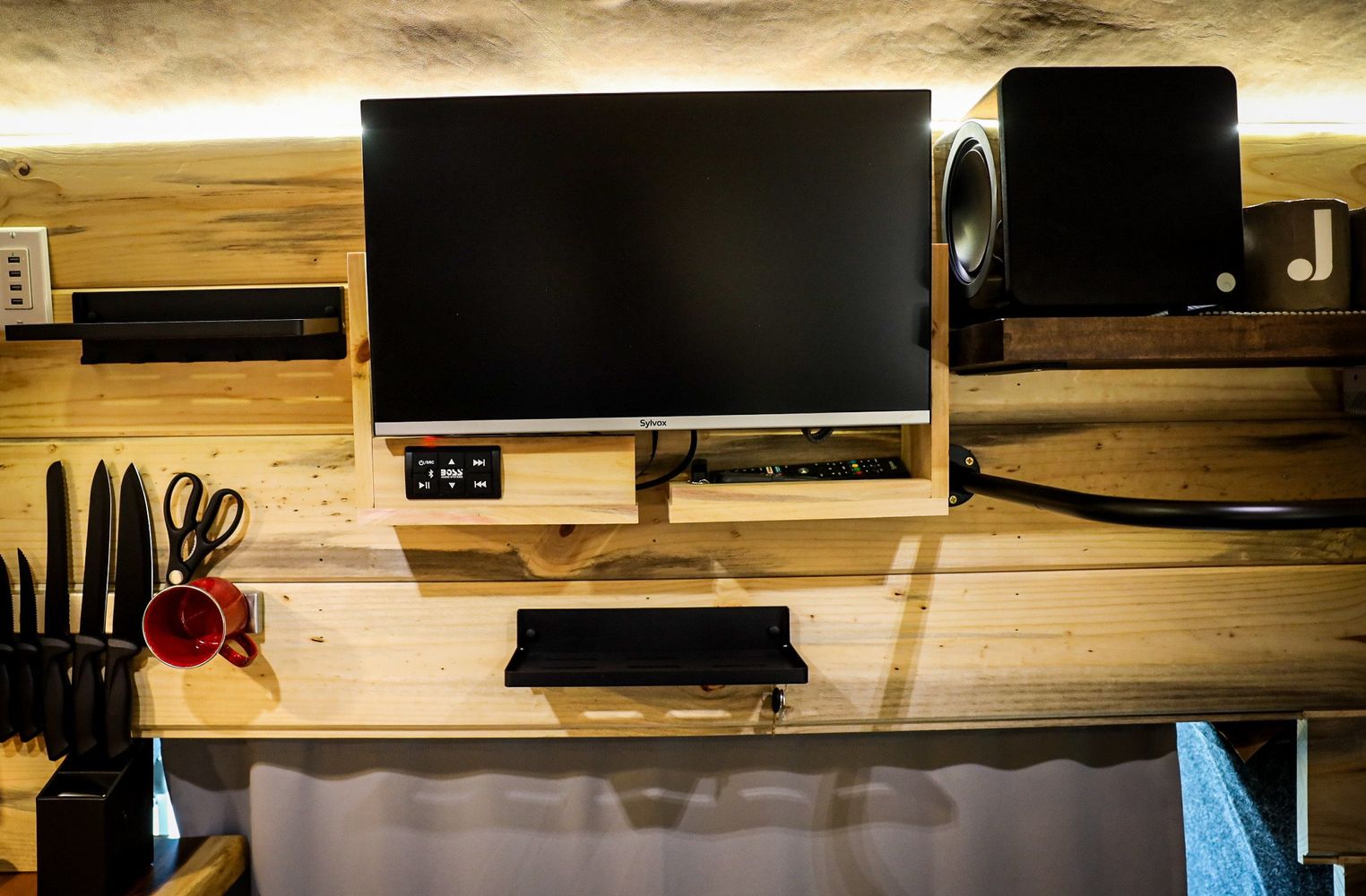

-RV smart tv with DVD works on 12v and 110v

-Cambridge Audio satellite speakers with subwoofer powered by Boss amplifier.

-Star-link mini with roam

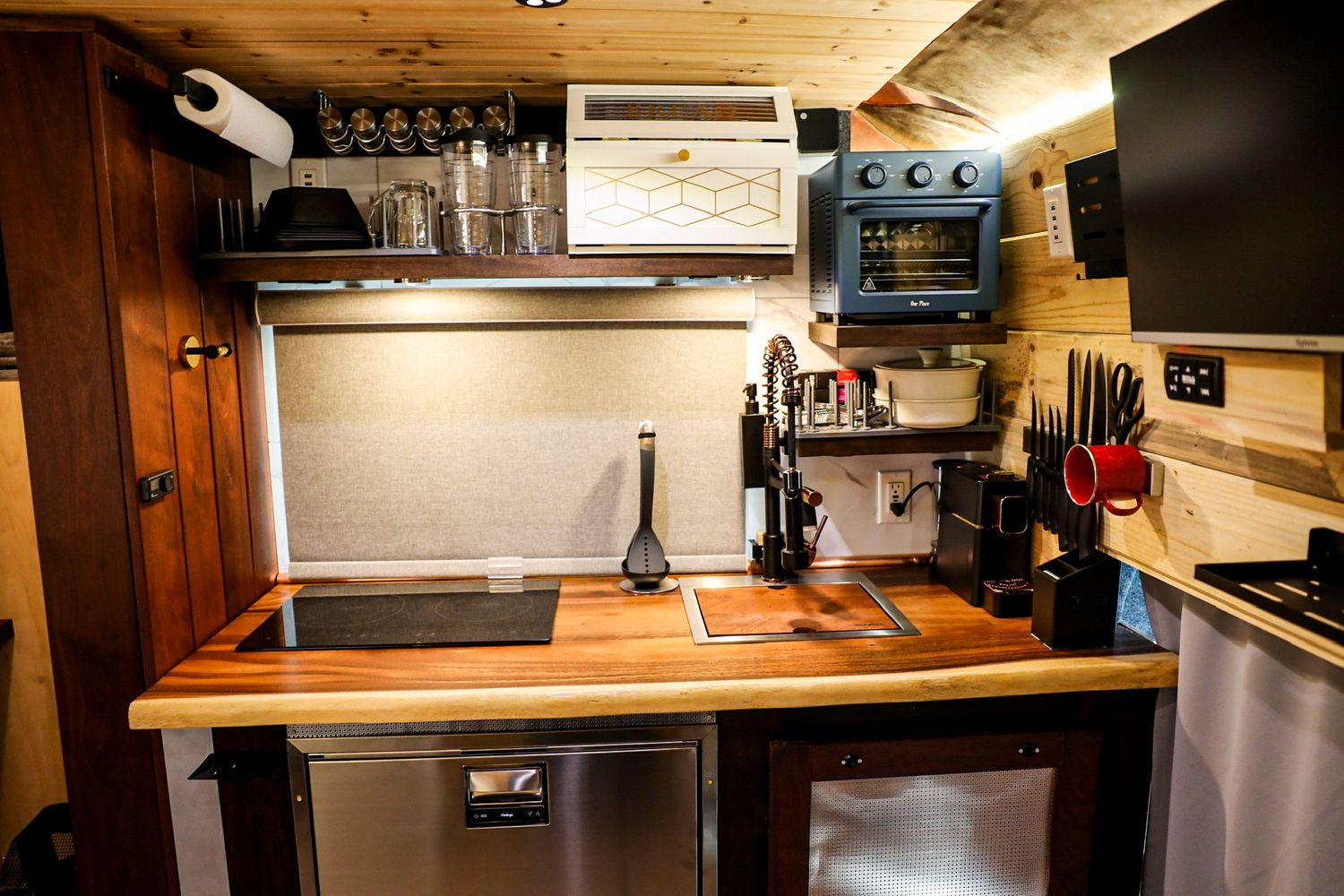

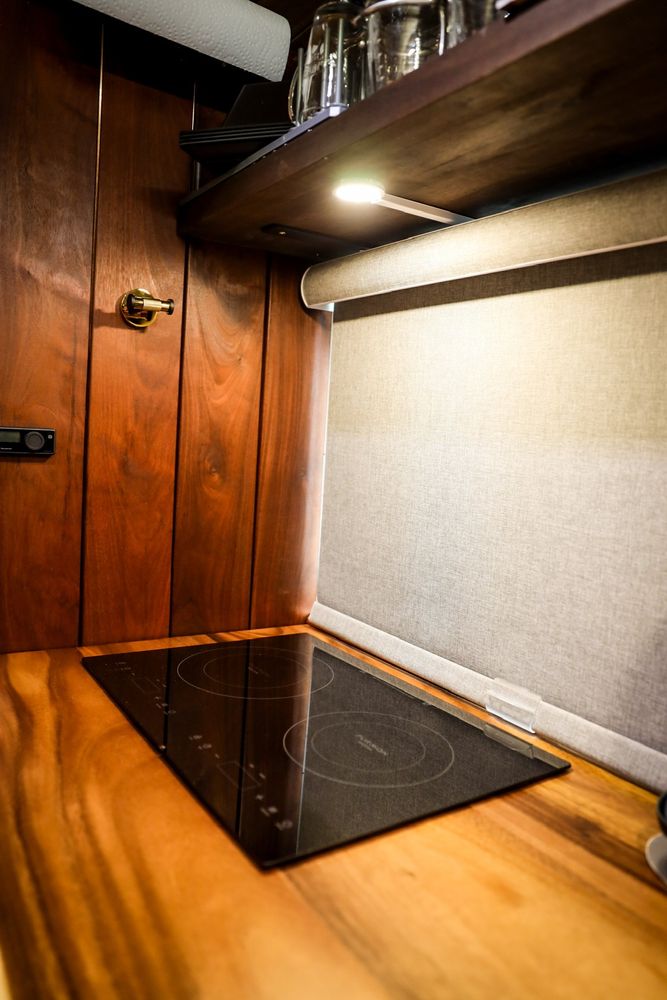

-Two place induction cooktop

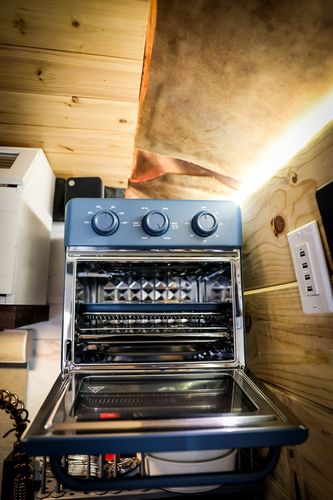

-Our place oven-air fryer-toaster combo

-Ample lighting and plugs throughout

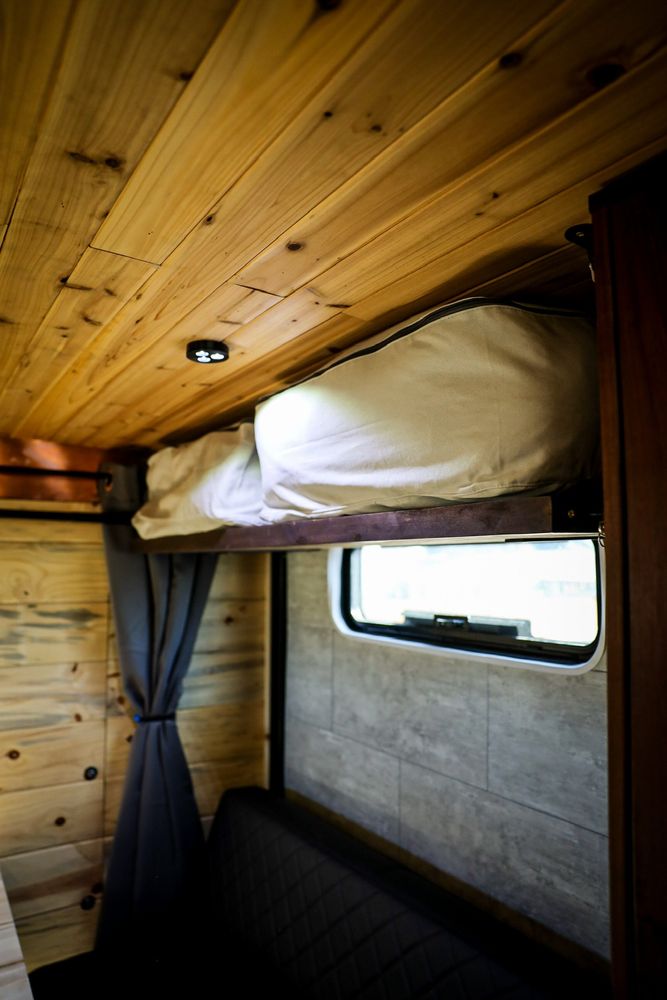

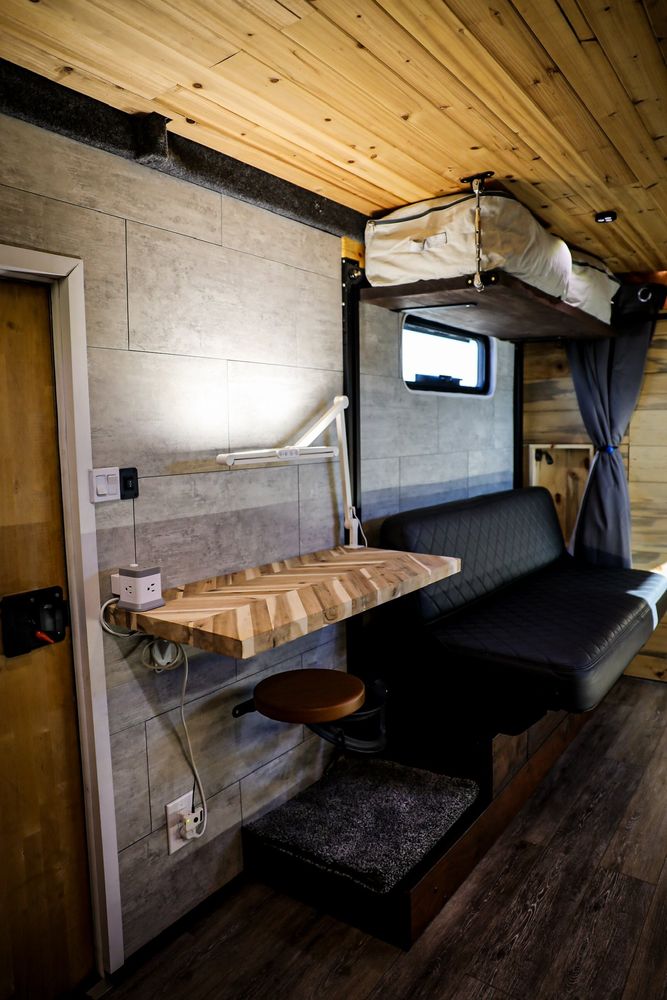

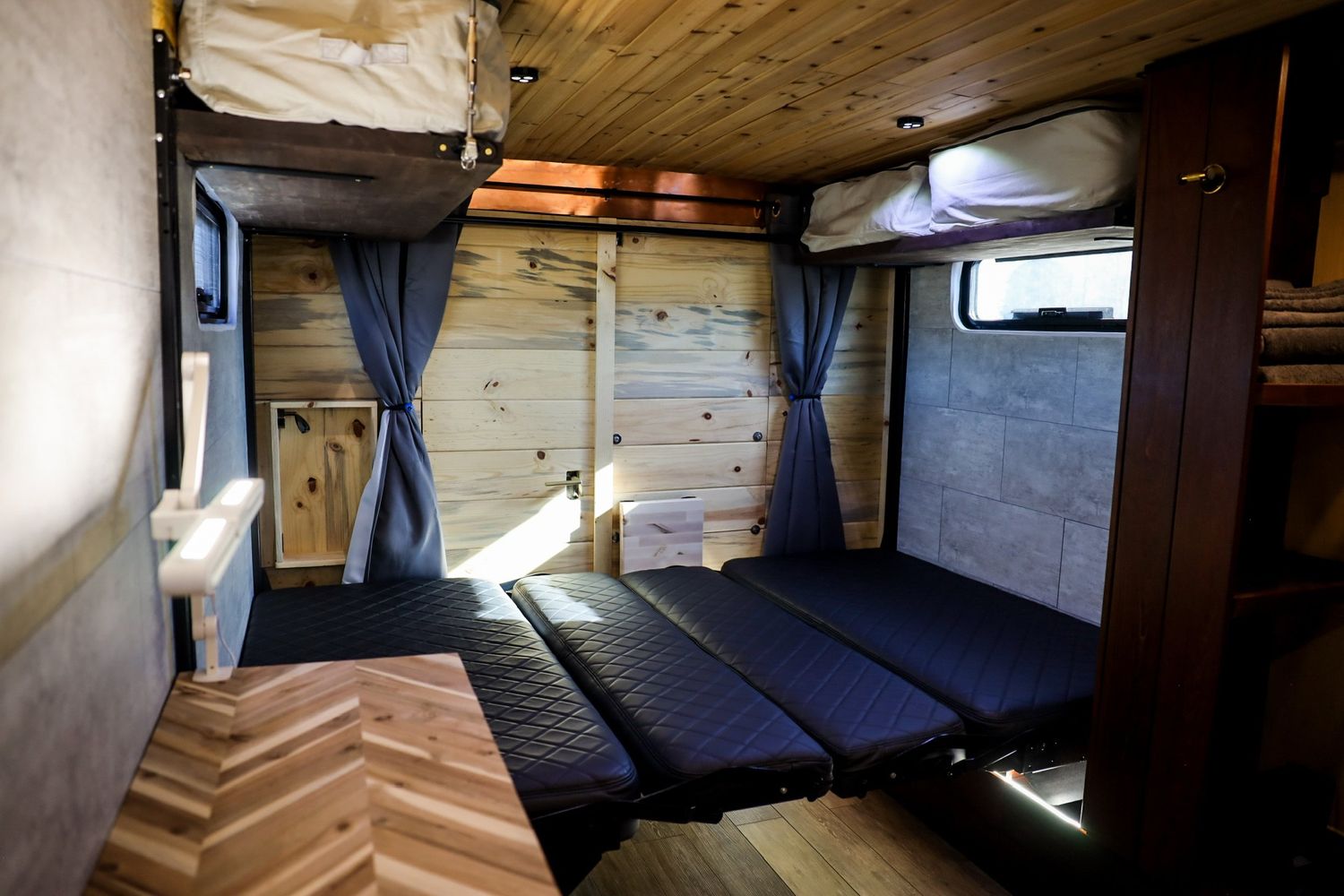

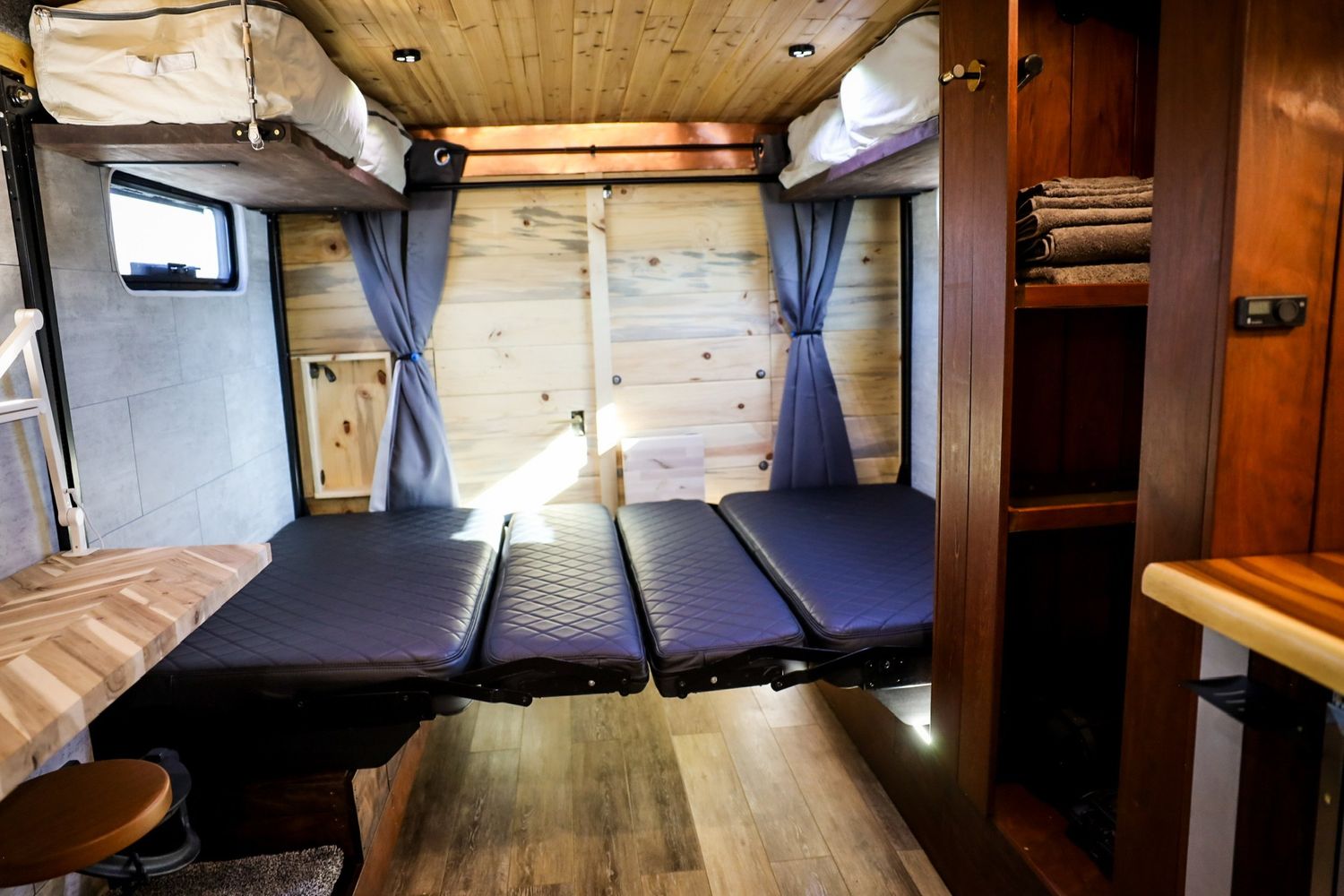

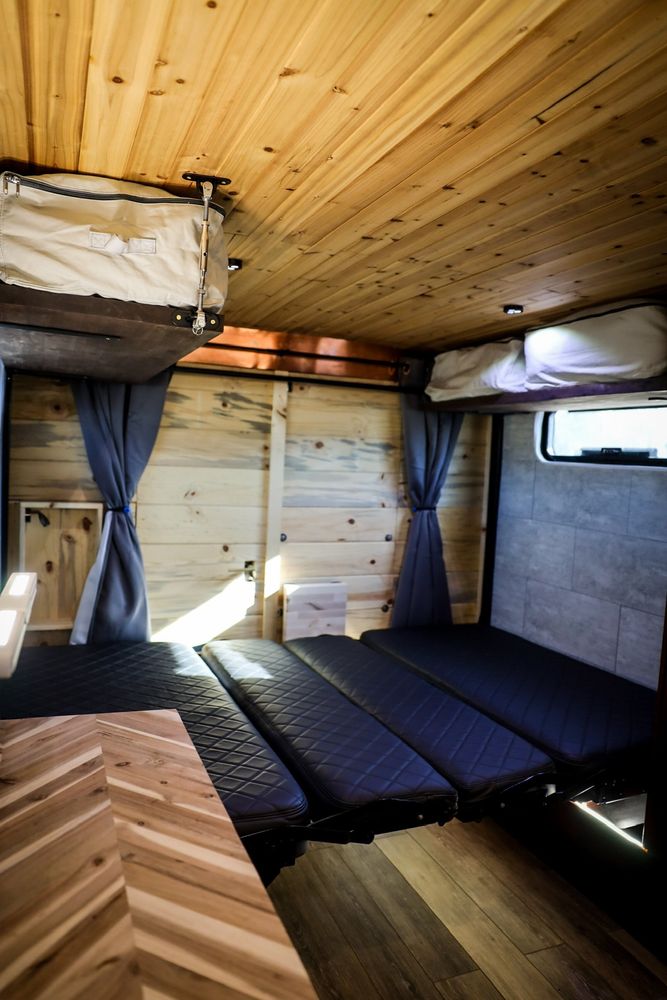

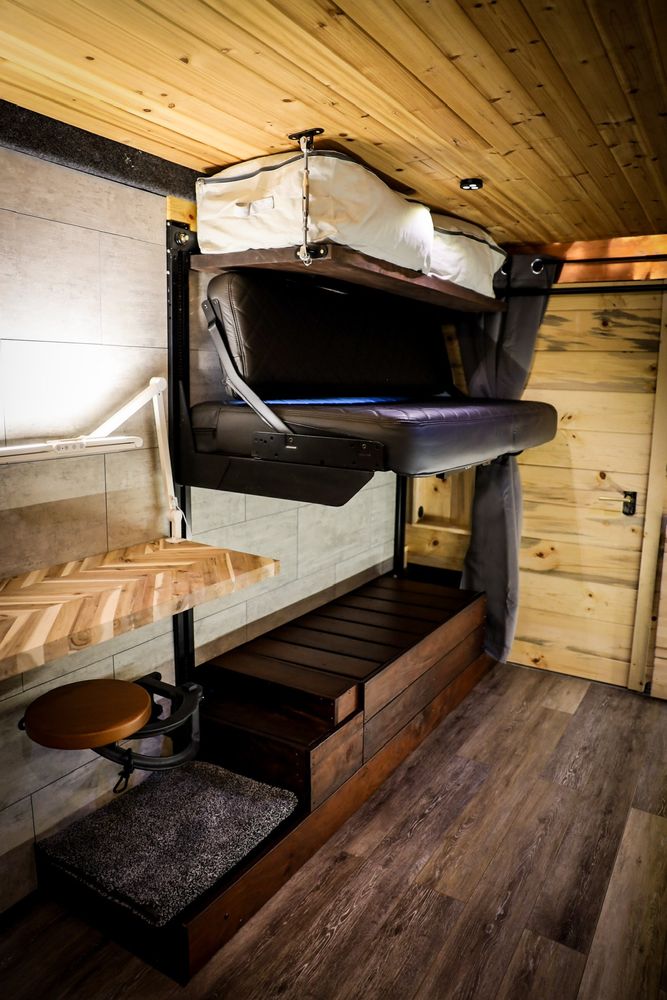

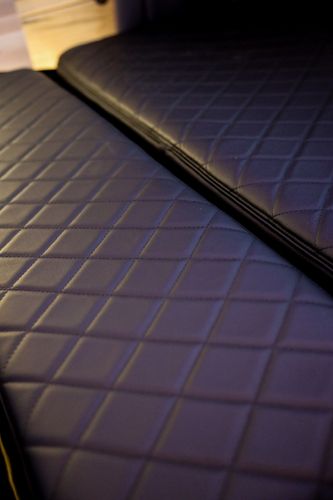

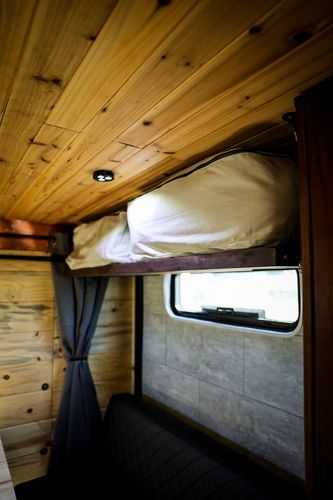

-Happy Jack bed system that raises up and down electrically. Seating area with fold out table or bed.

ADDITIONALLY

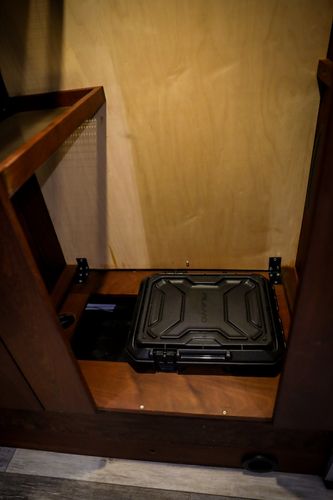

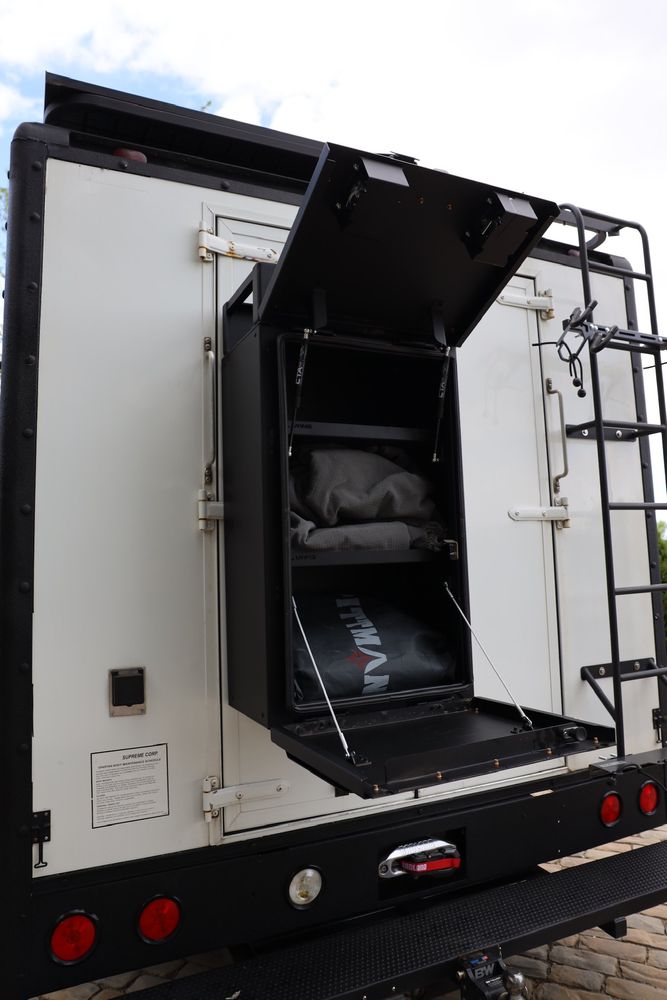

-Owl van monster box for additional storage

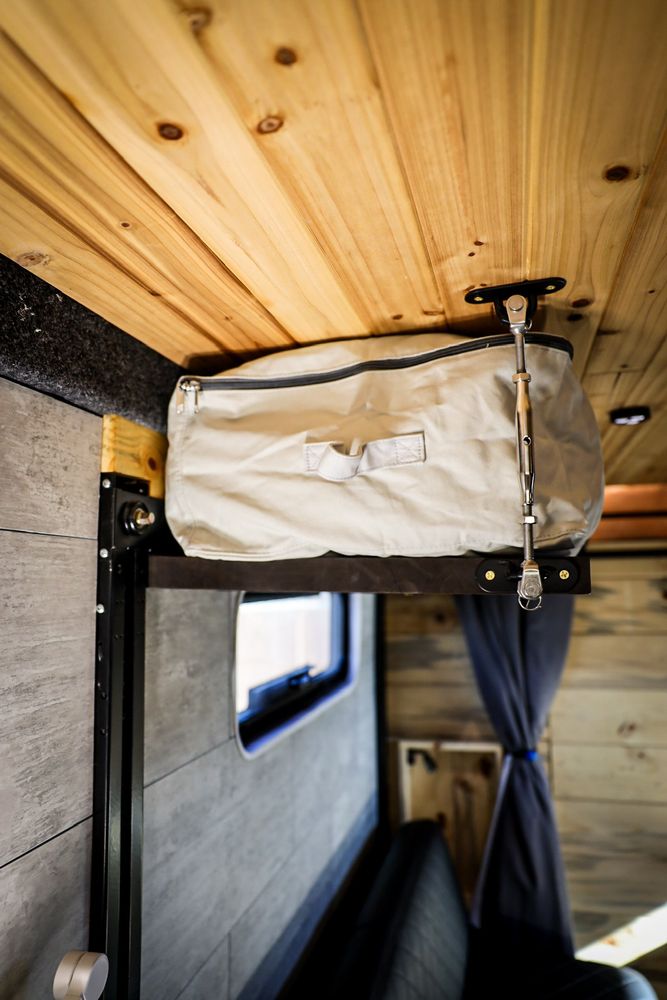

-Radius laundry bag

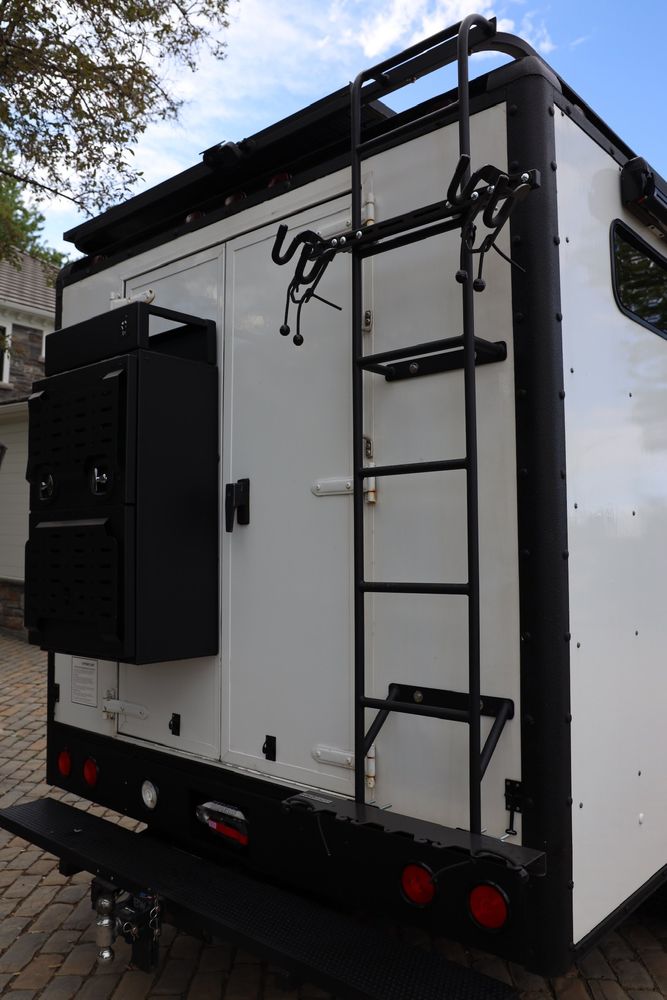

-Lolo two bike carrier on ladder

-Heavy duty roof rack

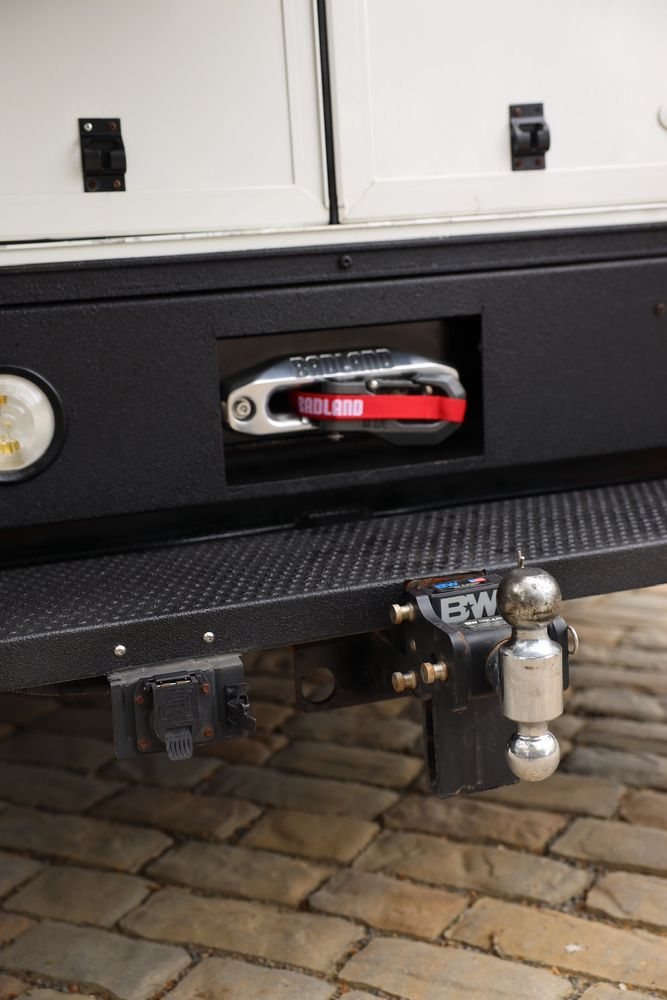

-3 inch custom hitch in the rear 2” upfront

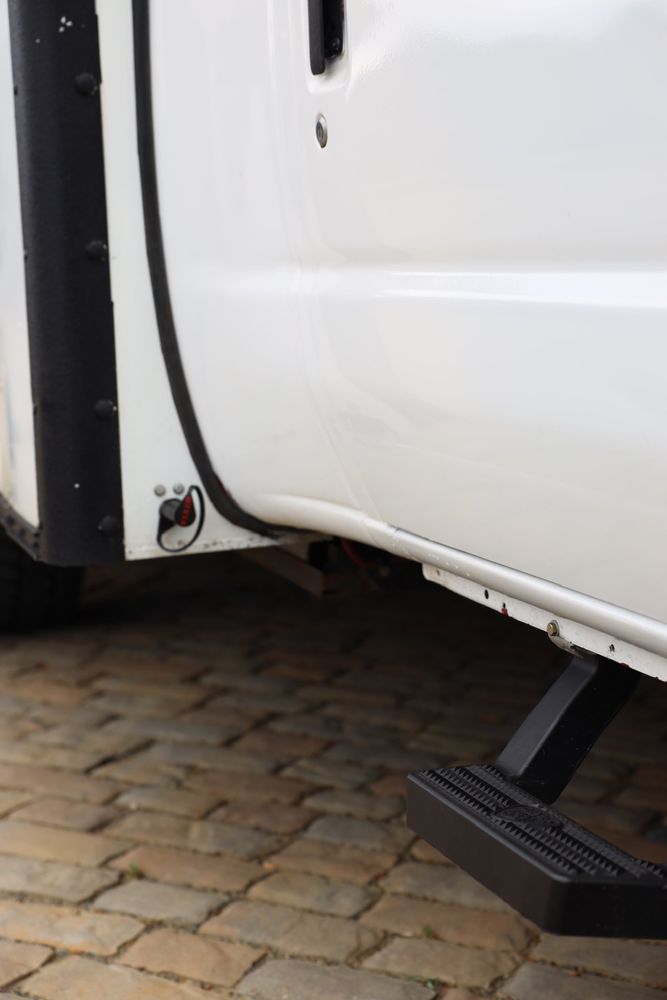

-Single entry step for the winter. Lippert 3 step folding for the summer.

-All kitchen ware has quiet ride location.

-High quality materials used throughout

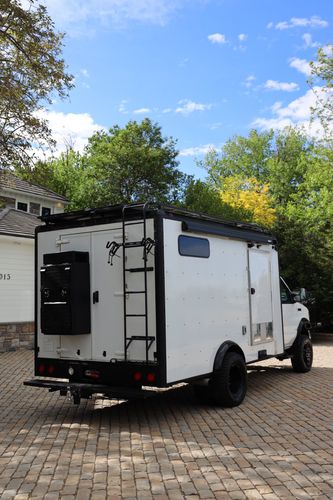

This off road adventure camper was built as a toy-hauler with 4’x13’ interior storage. It will fit a snowmobile (never used with any toys) and was designed to be waterproof and cold proof. With no exterior tanks and onboard air for quick winterization you can use it in the coldest of weather. The A/C unit is more than enough to keep it cool in the hottest of weather.

This adventure camper has enough battery storage and solar to use any type of power tools or even power an additional camper.

The build quality and materials used are the best available, no expense was spared. It was designed to winter camp in fringed temperatures with limited sun.

With a limited slip differential and front/rear winches you have confidence to travel all roads and trails.

Everything is new and only used for one week of camping winter of 2025 to ensure reliability and effectiveness.

The engine rebuild was done in April 2025 and only has a few hundred miles of driving.
